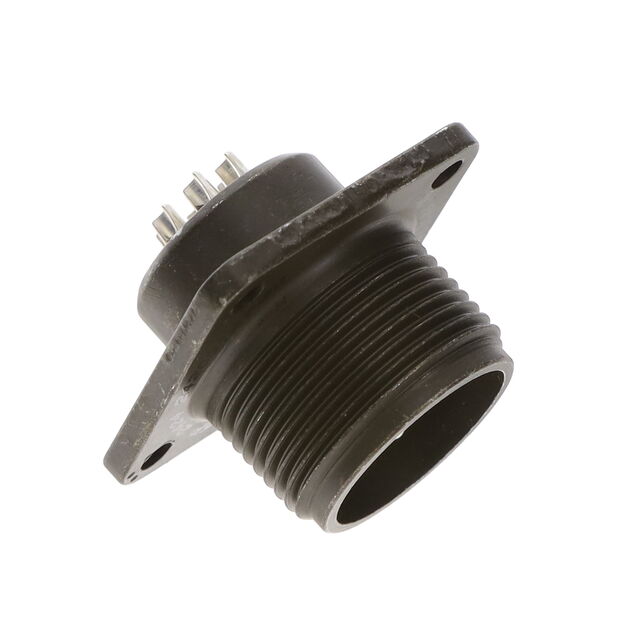

MS3102A14S-6P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102A14S-6P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A14S-6P

Applications	Military, Marine
Cable Opening [custom]	0.75 in
Cable Opening [custom]	19.05 mm
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-6
Shielding	Unshielded

MS3102A14 Series

Part	Shell Finish	Insert Material	Connector Type	Contact Finish - Mating	Mounting Feature	Color	Primary Material	Shell Material	Number of Positions	Shielding	Qualification	Contact Material	Applications	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Grade	Ingress Protection	Current Rating (Amps)
Amphenol Industrial Operations MS3102A14S-4S-RES
Amphenol Industrial Operations MS3102A14S-6P	Olive Drab Chromate over Cadmium	Neoprene	Male Pins Receptacle	Silver	Flange	Olive Drab	Metal	Aluminum Alloy	6	Unshielded	MIL-5015	Copper Alloy	Marine Military	14S-6	0.75 in	19.05 mm	N	-55 °C	125 °C
Amphenol Industrial Operations MS3102A14S-9P-RES
Amphenol Industrial Operations MS3102A14S-4P	Olive Drab Chromate over Cadmium	Neoprene	Male Pins Receptacle	Silver	Flange	Olive Drab	Metal	Aluminum Alloy	1	Unshielded	MIL-DTL-5015	Copper Alloy	Marine Military	14S-4			N	-55 °C	125 °C	900 VAC 1250 VDC	Military	Environment Resistant	13 A
Amphenol Industrial Operations MS3102A14S-2PX	Olive Drab Chromate over Cadmium	Neoprene	Male Pins Receptacle	Silver	Flange	Olive Drab	Metal	Aluminum Alloy	4	Unshielded	MIL-5015	Copper Alloy	Marine Military	14S-2	0.75 in	19.05 mm	X	-55 °C	125 °C
Amphenol Industrial Operations MS3102A14S-2P	Olive Drab Chromate over Cadmium	Neoprene	Male Pins Receptacle	Silver	Flange	Olive Drab	Metal	Aluminum Alloy	4	Unshielded	MIL-5015	Copper Alloy	Marine Military	14S-2	0.75 in	19.05 mm	N	-55 °C	125 °C
Amphenol Industrial Operations MS3102A14S-11S
Amphenol Industrial Operations MS3102A14S-11P
Amphenol Industrial Operations MS3102A14S-10S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.80
		10	$ 8.82
		25	$ 8.31
		50	$ 8.10
		100	$ 7.89
		250	$ 7.03
		500	$ 6.61
		1000	$ 5.84

Description

General part information

MS3102A14 Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup
