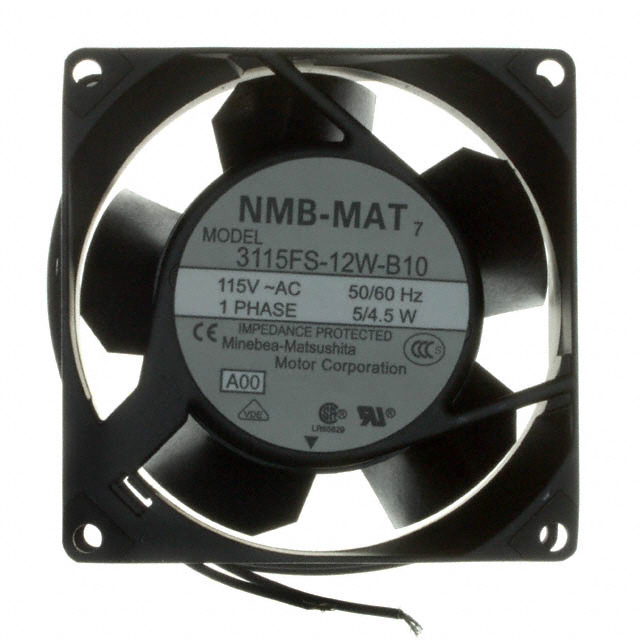

3115FS-12W-B10-A00
ActiveNMB TECHNOLOGIES
FAN AXIAL 80X38MM 115VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
3115FS-12W-B10-A00
ActiveNMB TECHNOLOGIES
FAN AXIAL 80X38MM 115VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3115FS-12W-B10-A00 |
|---|---|
| Air Flow | 0.616 m³/min |
| Air Flow | 22 CFM |
| Approval Agency | CSA, UL, VDE, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.087 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 36 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6 W |
| RPM | 2100 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 22.5 Pa |
| Static Pressure | 0.09 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 115 VAC |
| Weight | 335.66 g |
| Weight | 0.74 lb |
| Width [y] | 38 mm |
3115FS Series
| Part | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Termination | Material - Frame | Power (Watts) | RPM | Bearing Type | Static Pressure | Static Pressure | Fan Type | Weight | Weight | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | Width [y] | Current Rating (Amps) | Voltage - Rated | Air Flow | Air Flow | Noise | Material - Blade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | Aluminum | 7 W | 2700 RPM | Ball | 0.13 in H2O | 32.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.09 A | 115 VAC | 27 CFM | 0.756 mł/min | 40 dB(A) | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Terminals | Aluminum | 6 W | 2100 RPM | Ball | 0.09 in H2O | 22.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.087 A | 115 VAC | 22 CFM | 0.616 m³/min | 36 dB | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Terminals | Aluminum | 6.5 W | 2050 RPM | Ball | 0.09 in H2O | 22.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 50 mA | 230 VAC | 20 CFM | 0.56 m³/min | 35 dB | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | Aluminum | 6 W | 2100 RPM | Ball | 0.09 in H2O | 22.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.087 A | 115 VAC | 22 CFM | 0.616 m³/min | 36 dB | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | Aluminum | 8 W | 3250 RPM | Ball | 0.18 in H2O | 44.8 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.065 A | 230 VAC | 33 CFM | 0.924 mł/min | 44 dB | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Terminals | Aluminum | 7 W | 2700 RPM | Ball | 0.13 in H2O | 32.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.09 A | 115 VAC | 27 CFM | 0.756 mł/min | 40 dB(A) | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Terminals | Aluminum | 8 W | 3250 RPM | Ball | 0.18 in H2O | 44.8 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 0.065 A | 230 VAC | 33 CFM | 0.924 mł/min | 44 dB | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Terminals | Aluminum | 7.5 W | 2750 RPM | Ball | 0.13 in H2O | 32.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 60 mA | 230 VAC | 28 CFM | 0.784 m³/min | 40 dB(A) | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | Aluminum | 7.5 W | 2750 RPM | Ball | 0.13 in H2O | 32.5 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 60 mA | 230 VAC | 28 CFM | 0.784 m³/min | 40 dB(A) | Plastic |
NMB TECHNOLOGIES | 70 °C | 70 °C | -10 °C | -10 °C | 2 Wire Leads | Aluminum | 8.5 W | 3250 RPM | Ball | 0.18 in H2O | 44.8 Pa | Tubeaxial | 335.66 g | 0.74 lb | 80 mm | 80 mm | CE CSA TUV UL VDE | 38 mm | 100 mA | 115 VAC | 32 CFM | 0.896 m³/min | 44 dB | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.29 | |
Description
General part information
3115FS Series
Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 22.0 CFM (0.616mł/min) 2 Wire Leads
