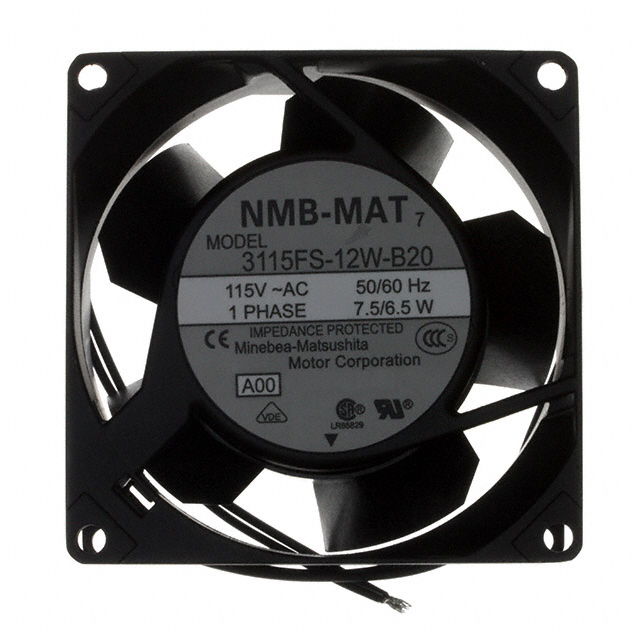

3115FS-12W-B20-A00

Active

NMB TECHNOLOGIES

FAN AXIAL 80X38MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans & Blowers Catalog +1

3115FS-12W-B20-A00

Active

NMB TECHNOLOGIES

FAN AXIAL 80X38MM 115VAC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3115FS-12W-B20-A00

Air Flow	27 CFM
Air Flow	0.756 mł/min
Approval Agency	CSA, UL, VDE, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	40 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7 W
RPM	2700 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.13 in H2O
Static Pressure	32.5 Pa
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Weight	335.66 g
Weight	0.74 lb
Width [y]	38 mm

3115FS Series

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Material - Frame	Power (Watts)	RPM	Bearing Type	Static Pressure	Static Pressure	Fan Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Width [y]	Current Rating (Amps)	Voltage - Rated	Air Flow	Air Flow	Noise	Material - Blade
NMB TECHNOLOGIES 3115FS-12W-B20-A00	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Aluminum	7 W	2700 RPM	Ball	0.13 in H2O	32.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.09 A	115 VAC	27 CFM	0.756 mł/min	40 dB(A)	Plastic
NMB TECHNOLOGIES 3115FS-12T-B10-A00	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	Aluminum	6 W	2100 RPM	Ball	0.09 in H2O	22.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.087 A	115 VAC	22 CFM	0.616 m³/min	36 dB	Plastic
NMB TECHNOLOGIES 3115FS-23T-B10-A00	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	Aluminum	6.5 W	2050 RPM	Ball	0.09 in H2O	22.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	50 mA	230 VAC	20 CFM	0.56 m³/min	35 dB	Plastic
NMB TECHNOLOGIES 3115FS-12W-B10-A00	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Aluminum	6 W	2100 RPM	Ball	0.09 in H2O	22.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.087 A	115 VAC	22 CFM	0.616 m³/min	36 dB	Plastic
NMB TECHNOLOGIES 3115FS-23W-B30-A00	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Aluminum	8 W	3250 RPM	Ball	0.18 in H2O	44.8 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.065 A	230 VAC	33 CFM	0.924 mł/min	44 dB	Plastic
NMB TECHNOLOGIES 3115FS-12T-B20-A00	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	Aluminum	7 W	2700 RPM	Ball	0.13 in H2O	32.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.09 A	115 VAC	27 CFM	0.756 mł/min	40 dB(A)	Plastic
NMB TECHNOLOGIES 3115FS-23T-B30-A00	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	Aluminum	8 W	3250 RPM	Ball	0.18 in H2O	44.8 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	0.065 A	230 VAC	33 CFM	0.924 mł/min	44 dB	Plastic
NMB TECHNOLOGIES 3115FS-23T-B20-A00	70 °C	70 °C	-10 °C	-10 °C	2 Terminals	Aluminum	7.5 W	2750 RPM	Ball	0.13 in H2O	32.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	60 mA	230 VAC	28 CFM	0.784 m³/min	40 dB(A)	Plastic
NMB TECHNOLOGIES 3115FS-23W-B20-A00	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Aluminum	7.5 W	2750 RPM	Ball	0.13 in H2O	32.5 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	60 mA	230 VAC	28 CFM	0.784 m³/min	40 dB(A)	Plastic
NMB TECHNOLOGIES 3115FS-12W-B30-A00	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	Aluminum	8.5 W	3250 RPM	Ball	0.18 in H2O	44.8 Pa	Tubeaxial	335.66 g	0.74 lb	80 mm	80 mm	CE CSA TUV UL VDE	38 mm	100 mA	115 VAC	32 CFM	0.896 m³/min	44 dB	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.05
		10	$ 15.32
		40	$ 14.41
		80	$ 13.86
		120	$ 12.77
		280	$ 11.95
		520	$ 11.77

Description

General part information

3115FS Series

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 27.0 CFM (0.756m³/min) 2 Wire Leads
