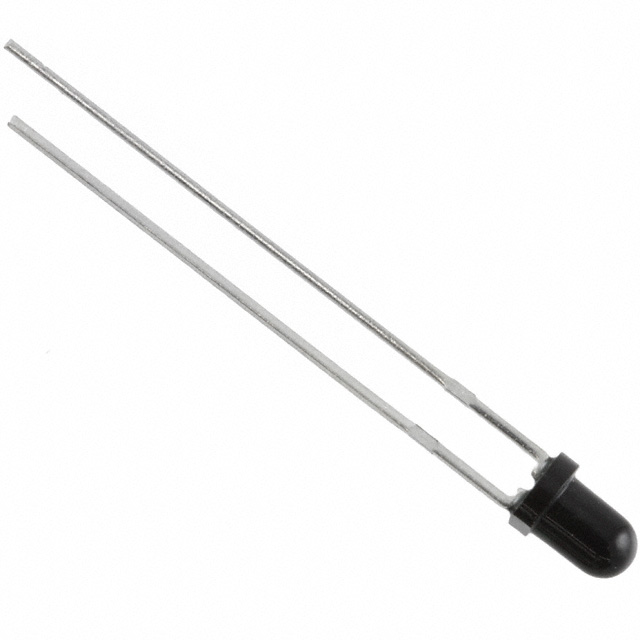

PD204-6B

Active

Everlight Electronics Co Ltd

SENSOR PHOTODIODE 940NM RADIAL

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTODIODE 940NM RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Response Time	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Dark (Typ)	Voltage - DC Reverse (Vr) (Max) [Max]	Active Area	Diode Type	Wavelength	Spectral Range [Min]	Spectral Range [Max]	Spectral Range [Max] [x]	Spectral Range [Min] [x]
Everlight Electronics Co Ltd PD204-6C/L3	Through Hole	10 ns	760 nm	1100 nm	Radial	-25 °C	85 °C	10 nA	170 V	9 mm²	PIN	940 nm
Everlight Electronics Co Ltd PD204-6B	Through Hole	6 ns			Radial T-1 Lens	-25 °C	85 °C	10 nA	170 V		PIN	940 nm	840 nm	1100 nm
Everlight Electronics Co Ltd PD204-6C	Through Hole	6 ns			Radial	-25 °C	85 °C	10 nA	170 V	9 mm²	PIN	940 nm			1100 nm	400 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 6ns Radial, T-1 Lens
