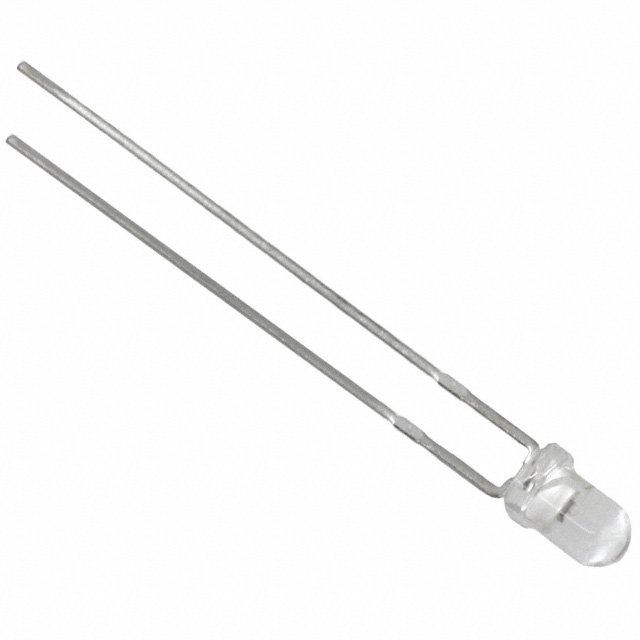

PD204-6C
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD204-6C
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD204-6C |
|---|---|
| Active Area | 9 mm² |
| Current - Dark (Typ) | 10 nA |
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial |
| Response Time | 6 ns |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 170 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
Description
General part information
PD204-6 Series
Photodiode 940nm 6ns Radial
Documents
Technical documentation and resources
