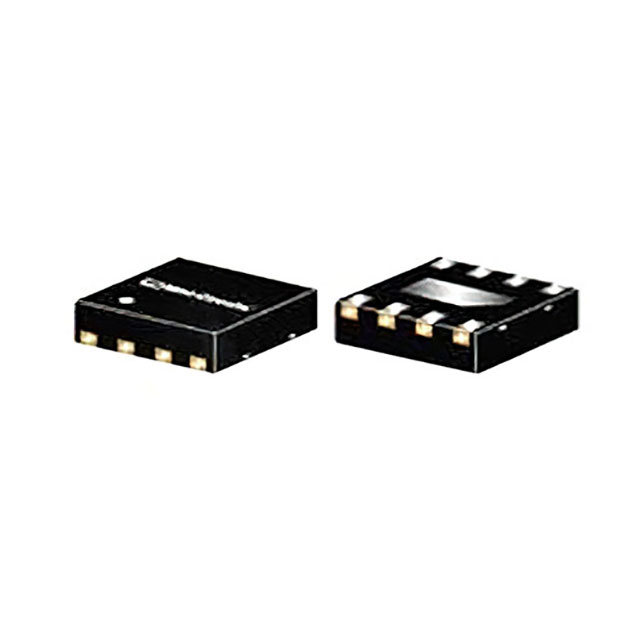

PMA2-123LN+

Active

MINI-CIRCUITS

IC AMP LTE 500MHZ-12GHZ MC1631-1

Search across all available documentation for this part.

Active

MINI-CIRCUITS

IC AMP LTE 500MHZ-12GHZ MC1631-1

Technical Specifications

Parameters and characteristics for this part

Specification	PMA2-123LN+

Current - Supply	68 mA
Frequency [Max]	12 GHz
Frequency [Min]	500 MHz
Gain	15.3 dB
Mounting Type	Surface Mount
Noise Figure	3.1 dB
P1dB	15.3 dBm
Package / Case	8-TFDFN Exposed Pad
RF Type	WLAN, SATCOM, WiFi, WiMax, UMTS, LTE, Radar
Supplier Device Package	MC1631-1
Test Frequency	2 GHz
Voltage - Supply	6 V, 5 V

Part	Voltage - Supply	Supplier Device Package	Test Frequency	Frequency [Max]	Frequency [Min]	P1dB	Mounting Type	Current - Supply	Gain	Package / Case	RF Type	Noise Figure	Voltage - Supply [Min]	Voltage - Supply [Max]
MINI-CIRCUITS PMA2-252LN+	3 V 4 V	MC1631-1	2 GHz	2.5 GHz	1.5 GHz	19.5 dBm	Surface Mount	57 mA	15.7 dB	8-TFDFN Exposed Pad	GPS LTE	1.2 dB
MINI-CIRCUITS PMA2-43LN+		MC1631-1	1.9 GHz	4 GHz	1.1 GHz	19.9 dBm	Surface Mount	51 mA	12.9 dB	8-TFDFN Exposed Pad	GPS GSM LTE Radar	1.08 dB
MINI-CIRCUITS PMA2-123LN+	5 V 6 V	MC1631-1	2 GHz	12 GHz	500 MHz	15.3 dBm	Surface Mount	68 mA	15.3 dB	8-TFDFN Exposed Pad	LTE Radar SATCOM UMTS WiFi WiMax WLAN	3.1 dB
MINI-CIRCUITS PMA2-63LN+		MC1631-1	4 GHz	6 GHz	400 MHz	18.4 dBm	Surface Mount	44 mA	11.5 dBd	8-TFDFN Exposed Pad		1 dB	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Amplifier IC LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN 500MHz ~ 12GHz MC1631-1
