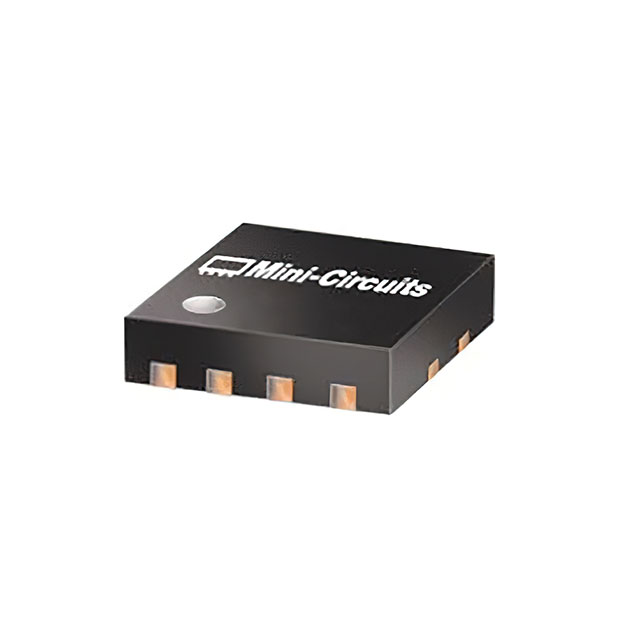

PMA2-252LN+

Active

MINI-CIRCUITS

IC AMP LTE 1.5GHZ-2.5GHZ MC1631

Search across all available documentation for this part.

Active

MINI-CIRCUITS

IC AMP LTE 1.5GHZ-2.5GHZ MC1631

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Supplier Device Package	Test Frequency	Frequency [Max]	Frequency [Min]	P1dB	Mounting Type	Current - Supply	Gain	Package / Case	RF Type	Noise Figure	Voltage - Supply [Min]	Voltage - Supply [Max]
MINI-CIRCUITS PMA2-252LN+	3 V 4 V	MC1631-1	2 GHz	2.5 GHz	1.5 GHz	19.5 dBm	Surface Mount	57 mA	15.7 dB	8-TFDFN Exposed Pad	GPS LTE	1.2 dB
MINI-CIRCUITS PMA2-43LN+		MC1631-1	1.9 GHz	4 GHz	1.1 GHz	19.9 dBm	Surface Mount	51 mA	12.9 dB	8-TFDFN Exposed Pad	GPS GSM LTE Radar	1.08 dB
MINI-CIRCUITS PMA2-123LN+	5 V 6 V	MC1631-1	2 GHz	12 GHz	500 MHz	15.3 dBm	Surface Mount	68 mA	15.3 dB	8-TFDFN Exposed Pad	LTE Radar SATCOM UMTS WiFi WiMax WLAN	3.1 dB
MINI-CIRCUITS PMA2-63LN+		MC1631-1	4 GHz	6 GHz	400 MHz	18.4 dBm	Surface Mount	44 mA	11.5 dBd	8-TFDFN Exposed Pad		1 dB	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 4.01

General part information

RF Amplifier IC LTE, GPS 1.5GHz ~ 2.5GHz MC1631-1
