0151341202

Active

Molex

PICOBLADE 12 CIRCUIT 150MM

Search across all available documentation for this part.

Active

Molex

PICOBLADE 12 CIRCUIT 150MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Connector Type	Features	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Cable Termination	Contact Finish	Length	Length	Length	Length [x]
Molex 0151340405	35.4 µin	0.9 µm	17.76 in	450 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	4	Crimp	Tin
Molex 0151340300	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded		Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340203	35.4 µin	0.9 µm	0.984 '	300 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	2	Crimp	Tin				11.81 "
Molex 0151341401	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	14	Crimp	Tin	0.328 '	100 mm	3.94 "
Molex 0151341200	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	12	Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340700	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	7	Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340505	35.4 µin	0.9 µm	17.76 in	450 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded		Crimp	Tin
Molex 0151340806	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	8	Crimp	Tin	1.97 ft	600 mm
Molex 0151341202	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	12	Crimp	Tin	0.492 ft	150 mm	5.91 "
Molex 0151340402	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	4	Crimp	Tin	0.492 ft	150 mm	5.91 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

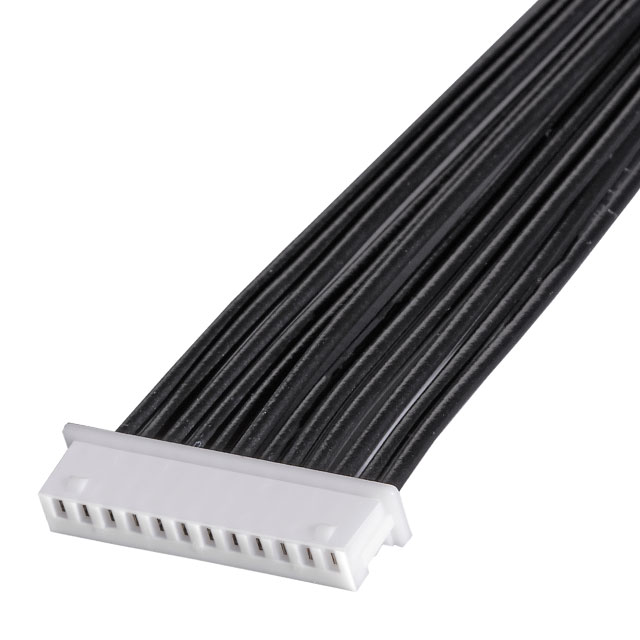

12 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")

Technical documentation and resources
