0151340203

Active

Molex

0151340203 MOLEX CABLE ASSEMBLY OTHER UL 1061 0.3M 28AWG PICOBLADE TO PICOBLADE CRIMP-CRIMP PICOBLADE BAG - ARROW.COM

Search across all available documentation for this part.

Active

Molex

0151340203 MOLEX CABLE ASSEMBLY OTHER UL 1061 0.3M 28AWG PICOBLADE TO PICOBLADE CRIMP-CRIMP PICOBLADE BAG - ARROW.COM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Connector Type	Features	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Cable Termination	Contact Finish	Length	Length	Length	Length [x]
Molex 0151340405	35.4 µin	0.9 µm	17.76 in	450 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	4	Crimp	Tin
Molex 0151340300	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded		Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340203	35.4 µin	0.9 µm	0.984 '	300 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	2	Crimp	Tin				11.81 "
Molex 0151341401	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	14	Crimp	Tin	0.328 '	100 mm	3.94 "
Molex 0151341200	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	12	Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340700	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	7	Crimp	Tin	0.164 '	50 mm	1.97 "
Molex 0151340505	35.4 µin	0.9 µm	17.76 in	450 mm	Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded		Crimp	Tin
Molex 0151340806	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	8	Crimp	Tin	1.97 ft	600 mm
Molex 0151341202	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	12	Crimp	Tin	0.492 ft	150 mm	5.91 "
Molex 0151340402	35.4 µin	0.9 µm			Socket to Socket	Friction Lock	1	0.049 in	1.25 mm	Unshielded	4	Crimp	Tin	0.492 ft	150 mm	5.91 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

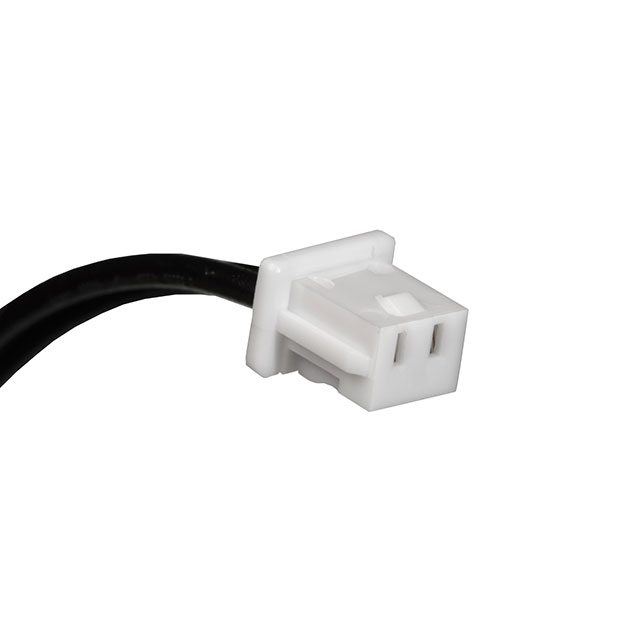

2 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")
