556710

Active

nVent

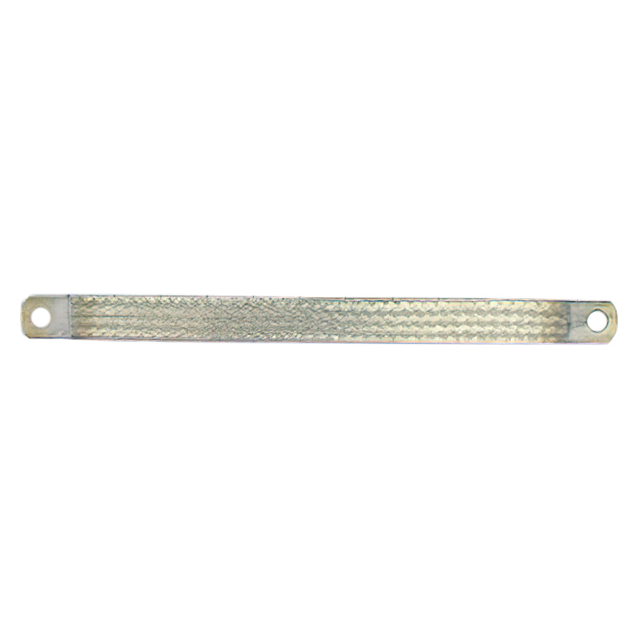

GROUND BRAID FLAT 0.91" X 1'

Search across all available documentation for this part.

Active

nVent

GROUND BRAID FLAT 0.91" X 1'

Technical Specifications

Parameters and characteristics for this part

Part	Material	Thickness	Thickness	Size, Supplied	Size, Supplied	Length [x]	Length [x]	Type	Length	Length	Size, Supplied [x]	Size, Supplied [x]	Thickness [x]	Thickness [x]	Accessory Type	Size, Supplied [y]	Size, Supplied [y]	Wire Gauge - Ends	Size, Supplied [x]	Number of Carriers
nVent 556710	Copper Tin Plated	0.059 in	1.5 mm	0.906 in	23 mm	1 ft	300 mm	Flat Busbar
nVent 556670	Copper Tin Plated	0.059 in	1.5 mm	0.906 in	23 mm	0.3 ft	0.1 m	Flat Busbar
nVent 563510	Copper Tinned							Flat Busbar	0.25 m	0.8 ft	1.575 in	40.01 mm	0.4 mm	0.016 in
nVent 559692	Polyester														Insulator
nVent 534425	Copper Tinned	0.07 in	1.78 mm			2.1 ft	0.63 m	Flat Busbar								23.88 mm	0.94 in
nVent 534419	Copper Tinned	0.07 in	1.78 mm					Flat Busbar	0.83 m	2.7 ft						20.07 mm	0.79 in	2 aught AWG
nVent 556850	Copper Tin Plated	0.098 in	2.5 mm					Flat Busbar	0.23 m	0.8 ft	28 mm								1.102 "
nVent 556960	Copper Tinned	0.079 in	2.01 mm					Flat Busbar	50 cm	1.6 '						22 mm	0.866 in	2 AWG
nVent 548400	Glass Filled Nylon Polyamide (PA)														Insulator
nVent 503540	Copper Tinned	0.075 in	1.91 mm					Flat	100 m	328.1 ft						18.49 mm	0.728 in	4 AWG		1404

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.42

General part information

Flat, Busbar Ground Braid 0.906" (23.00mm) - Width X 1.0' (0.30m)

Technical documentation and resources

No documents available
