MBJ GROUNDING AND BONDING BRAID,

Search across all available documentation for this part.

Active

nVent

MBJ GROUNDING AND BONDING BRAID,

Technical Specifications

Parameters and characteristics for this part

Part	Material	Thickness	Thickness	Size, Supplied	Size, Supplied	Length [x]	Length [x]	Type	Length	Length	Size, Supplied [x]	Size, Supplied [x]	Thickness [x]	Thickness [x]	Accessory Type	Size, Supplied [y]	Size, Supplied [y]	Wire Gauge - Ends	Size, Supplied [x]	Number of Carriers
nVent 556710	Copper Tin Plated	0.059 in	1.5 mm	0.906 in	23 mm	1 ft	300 mm	Flat Busbar
nVent 556670	Copper Tin Plated	0.059 in	1.5 mm	0.906 in	23 mm	0.3 ft	0.1 m	Flat Busbar
nVent 563510	Copper Tinned							Flat Busbar	0.25 m	0.8 ft	1.575 in	40.01 mm	0.4 mm	0.016 in
nVent 559692	Polyester														Insulator
nVent 534425	Copper Tinned	0.07 in	1.78 mm			2.1 ft	0.63 m	Flat Busbar								23.88 mm	0.94 in
nVent 534419	Copper Tinned	0.07 in	1.78 mm					Flat Busbar	0.83 m	2.7 ft						20.07 mm	0.79 in	2 aught AWG
nVent 556850	Copper Tin Plated	0.098 in	2.5 mm					Flat Busbar	0.23 m	0.8 ft	28 mm								1.102 "
nVent 556960	Copper Tinned	0.079 in	2.01 mm					Flat Busbar	50 cm	1.6 '						22 mm	0.866 in	2 AWG
nVent 548400	Glass Filled Nylon Polyamide (PA)														Insulator
nVent 503540	Copper Tinned	0.075 in	1.91 mm					Flat	100 m	328.1 ft						18.49 mm	0.728 in	4 AWG		1404

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	50	$ 36.40

General part information

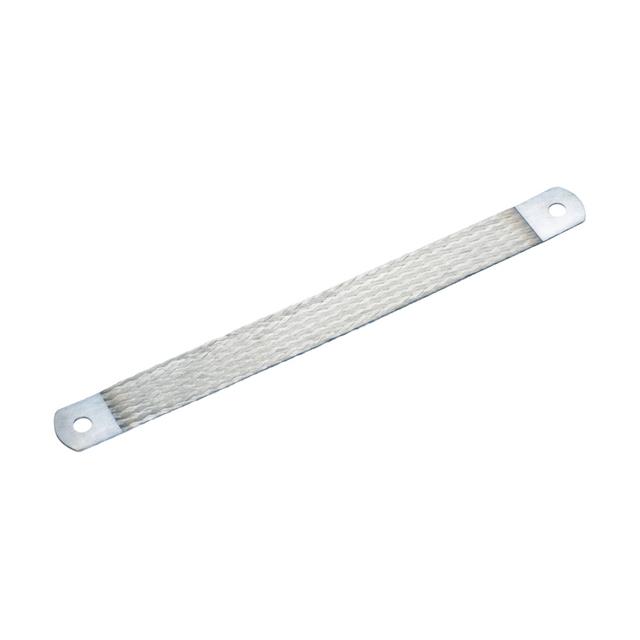

Flat, Busbar Ground Braid 1.575" (40.01mm) - Width X 0.8' (0.25m)
