09700202622

Active

HARTING Technology Group

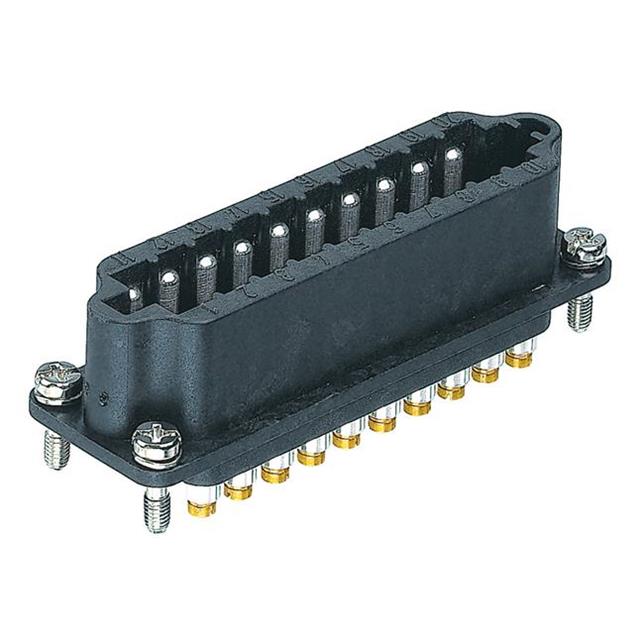

INSERT MALE 20POS SCREW

Search across all available documentation for this part.

Active

HARTING Technology Group

INSERT MALE 20POS SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	09700202622

Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Number of Positions	20
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Termination Style	Screw
Voltage Rating	50 V

Part	Voltage Rating	Number of Positions	Gender	Termination Style	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Size	Current Rating (Amps)
HARTING Technology Group 09700202622	50 V	20	Male	Screw	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202817	50 V	20	Female	Screw	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202816	50 V	20	Female	Solder	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202621	50 V	20	Male	Solder	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert 20 Position Screw
