09700202621

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; STAF®; 10A; 25V; PIN: 20

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; STAF®; 10A; 25V; PIN: 20

Technical Specifications

Parameters and characteristics for this part

Specification	09700202621

Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 HB
Number of Positions	20
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Termination Style	Solder
Voltage Rating	50 V

Part	Voltage Rating	Number of Positions	Gender	Termination Style	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Size	Current Rating (Amps)
HARTING Technology Group 09700202622	50 V	20	Male	Screw	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202817	50 V	20	Female	Screw	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202816	50 V	20	Female	Solder	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A
HARTING Technology Group 09700202621	50 V	20	Male	Solder	Polyamide (PA) Nylon	UL94 HB	100 °C	-40 °C	Silver	Copper Alloy	16 A	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

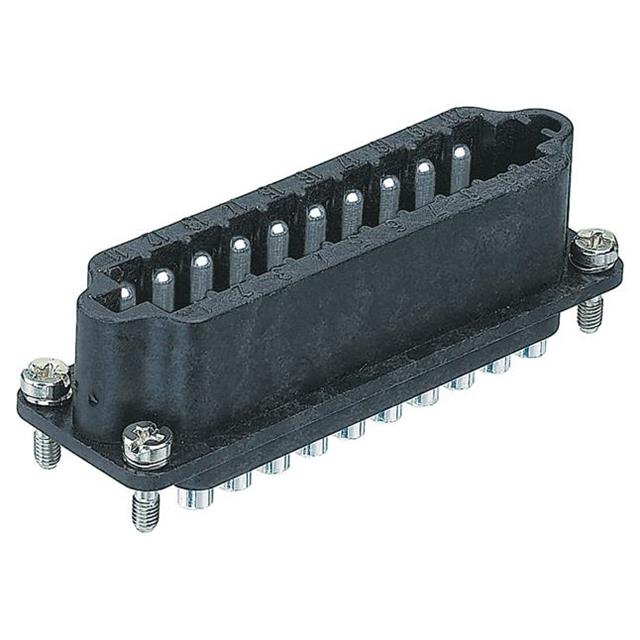

Male Insert 20 Position Solder
