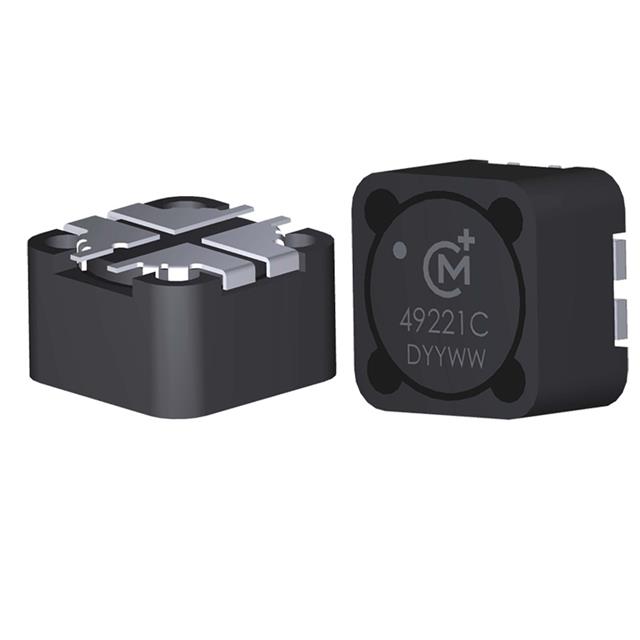

49221C

Active

Murata Power Solutions Inc.

FIXED IND 220UH 950MA 805MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide Datasheet

49221C

Active

Murata Power Solutions Inc.

FIXED IND 220UH 950MA 805MOHM SM

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	49221C

Current Rating (Amps)	950 mA
DC Resistance (DCR) [Max]	805 mOhm
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Inductance	220 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.472 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.472 "
Size / Dimension [y]	12 mm
Type	Wirewound

49 Series

Part	Inductance	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Q @ Freq	Shielding	DC Resistance (DCR)
Murata Power Solutions Inc. 49100SC	10 µH	4 Lead	Nonstandard	21 mOhm	5.1 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	19 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	20 %	43	Shielded
Murata Power Solutions Inc. 49471SC		4 Lead	Nonstandard	810 mOhm	750 mA	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	4 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	20 %	37 800 kHz	Shielded
Murata Power Solutions Inc. 49102SC	1 mH	4 Lead	Nonstandard	1.5 Ohm	0.5 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	3 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	20 %	26 800 kHz	Shielded
Murata Power Solutions Inc. 49220SC	22 µH	4 Lead	Nonstandard		3.1 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	12 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	20 %		Shielded	42 mOhm
Murata Power Solutions Inc. 49221C	220 µH	4 Lead	Nonstandard	805 mOhm	950 mA	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C		Wirewound	0.472 in	12 mm	12 mm	0.472 "			Shielded
Murata Power Solutions Inc. 49221SC	220 µH	4 Lead	Nonstandard	380 mOhm	1.1 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	4 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	20 %	36 800 kHz	Shielded
Murata Power Solutions Inc. 492R2SC	2.2 µH	4 Lead	Nonstandard	8 mOhm	9.8 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	48 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	30 %	1 MHz 45	Shielded
Murata Power Solutions Inc. 494R7SC	4.7 ÁH	4 Lead	Nonstandard		7.7 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C	32 MHz	Wirewound	0.48 in	12.2 mm	12.2 mm	0.48 in	30 %	1 MHz 42	Shielded	12 mOhm
Murata Power Solutions Inc. 496R8C	6.8 µH	4 Lead	Nonstandard		5.4 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C		Wirewound	0.472 in	12 mm	12 mm	0.472 "			Shielded	27 mOhm
Murata Power Solutions Inc. 49220C	22 µH	4 Lead	Nonstandard	81 mOhm	3 A	8 mm	0.315 in	10 kHz	Surface Mount	85 °C	-40 °C		Wirewound	0.472 in	12 mm	12 mm	0.472 "			Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.73
	Digi-Reel®	1	$ 0.73
	Tape & Reel (TR)	500	$ 0.78
		1000	$ 0.73

Description

General part information

49 Series

220 µH Shielded Wirewound Inductor 950 mA 805mOhm Max Nonstandard, 4 Lead
