HIF6A-40PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

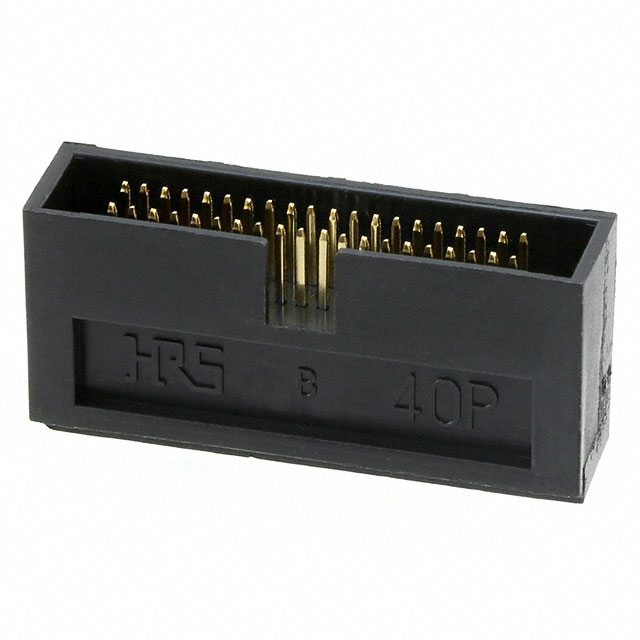

BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6A-40PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 40 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6A-40PA-1.27DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.21 mm
Contact Length - Mating	0.205 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	300 VDC

HIF6A Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Voltage Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Contact Shape	Number of Rows	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Applications	Insulation Height [z]	Insulation Height [z]	Features	Style
Hirose Electric USA, Inc. HIF6A-60PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	60	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-50PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	50	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-20DA-1.27DSA(71)	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	20	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-50DA-1.27DSA	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	50	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-100PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	100	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-20PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	20	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-40DA-1.27DS(71)				125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm			All	40		Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm		General Purpose			Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-50DA-1.27DS(71)				125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm			All	50		Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm		General Purpose			Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-60DA-1.27DSA(71)	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	60	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-40PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	40	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
