HIF6A-100PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

1.27MM PITCH TWO-PIECE CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6A-100PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

1.27MM PITCH TWO-PIECE CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6A-100PA-1.27DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.21 mm
Contact Length - Mating	0.205 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	300 VDC

HIF6A Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Voltage Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Number of Positions	Contact Finish - Post	Contact Shape	Number of Rows	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Applications	Insulation Height [z]	Insulation Height [z]	Features	Style
Hirose Electric USA, Inc. HIF6A-60PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	60	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-50PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	50	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-20DA-1.27DSA(71)	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	20	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-50DA-1.27DSA	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	50	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-100PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	100	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-20PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	20	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. HIF6A-40DA-1.27DS(71)				125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm			All	40		Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm		General Purpose			Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-50DA-1.27DS(71)				125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm			All	50		Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm		General Purpose			Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-60DA-1.27DSA(71)	2 çm	78.7 çin		125 VAC	Push-Pull	85 °C	-55 °C	Female Socket	0.5 A	0.203 Ám	8 Áin	Through Hole	UL94 V-0	Black	Gold	Solder					All	60	Tin	Square	2	Copper Alloy	Receptacle	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	0.118 in	3 mm	14.8 mm	General Purpose	0.346 in	8.8 mm	Polarizing Key	Board to Board Cable
Hirose Electric USA, Inc. HIF6A-40PA-1.27DS(71)	2 çm	78.7 çin	Shrouded - 4 Wall	300 VDC	Push-Pull	85 °C	-55 °C	Male Pin	0.5 A	0.203 Ám	8 Áin	Through Hole Right Angle	UL94 V-0	Black	Gold	Solder	0.335 "	8.51 mm	5.21 mm	0.205 in	All	40	Tin	Square	2	Brass	Header	2.54 mm	0.1 in	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.25
		30	$ 7.04
		90	$ 6.53
		450	$ 5.50
		960	$ 4.81
Newark	Each	1	$ 7.92
		510	$ 6.98

Description

General part information

HIF6A Series

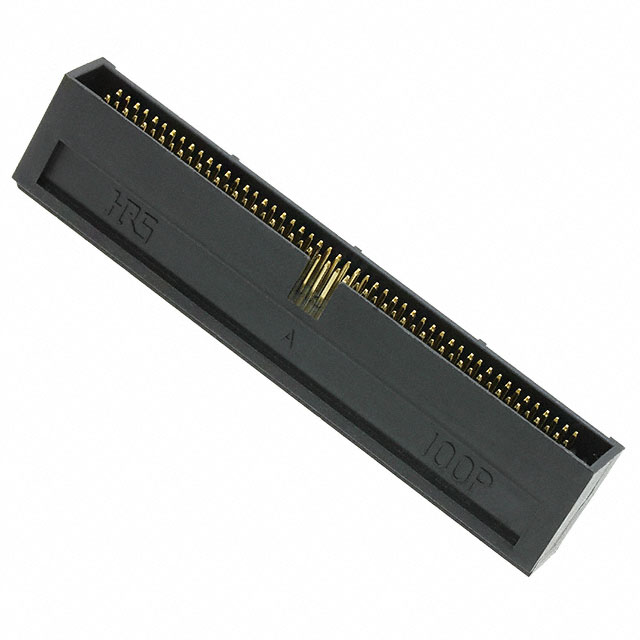

Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm)
