JA3D-C1001073

Active

Jabil Inc.

PC 1500 FR, BLACK, 1.75MM, 1KG S

Search across all available documentation for this part.

Active

Jabil Inc.

PC 1500 FR, BLACK, 1.75MM, 1KG S

Technical Specifications

Parameters and characteristics for this part

Specification	JA3D-C1001073

Color	Black
Density	1.18 g/cm³
Features	Wear & Friction, Flame-Retardant
Filament Diameter [diameter]	1.75 mm
Filament Diameter [diameter]	0.07 in
Filament Material	PC (Polycarbonate)
Flex Strength	93.9 Mpa
Operating Temperature [Max]	305 °C
Operating Temperature [Min]	285 °C
Tensile Strength	61 Mpa

Part	Operating Temperature [Min]	Operating Temperature [Max]	Filament Material	Color	Filament Diameter [diameter]	Filament Diameter [diameter]	Flex Strength	Features	Density [Max]	Density [Min]	Operating Temperature [custom]	Tensile Strength	Density
Jabil Inc. JA3D-C1001032	240 °C	250 °C	PETG (Polyethylene Terephthalate Glycol-modified)	Natural	1.75 mm	0.07 in
Jabil Inc. JA3D-C1001068			ABS (Acrylonitrile Butadiene Styrene)	Black	1.75 mm	0.07 in	59.8 Mpa	Reinforced	1.12 g/cm³	1.1 g/cm³	275 °C 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001031	220 °C	230 °C	TPU (Thermoplastic Polyurethane)	Natural	2.85 mm	0.112 in		Elastomeric Wear & Friction					1.2 g/cm³
Jabil Inc. JA3D-C1001317			PA (Polyamide)	Blue	2.85 mm	0.112 in
Jabil Inc. JA3D-C1001029	240 °C	250 °C	PETG (Polyethylene Terephthalate Glycol-modified)	Natural	2.85 mm	0.112 in							1.24 g/cmł
Jabil Inc. JA3D-C1001055			ABS (Acrylonitrile Butadiene Styrene)	Natural	2.85 mm	0.112 in	59.8 Mpa	Reinforced	1.12 g/cm³	1.1 g/cm³	275 °C 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001073	285 °C	305 °C	PC (Polycarbonate)	Black	1.75 mm	0.07 in	93.9 Mpa	Flame-Retardant Wear & Friction				61 Mpa	1.18 g/cm³
Jabil Inc. JA3D-C1001135	240 °C	250 °C	TPE (Thermoplastic Elastomer)	Black	2.85 mm	0.112 in		Elastomeric Wear & Friction				6 Mpa	1.05 g/cmł
Jabil Inc. JA3D-C1001058	285 °C	305 °C	PC (Polycarbonate)	Natural	1.75 mm	0.07 in	93.9 Mpa	Flame-Retardant Wear & Friction				61 Mpa	1.18 g/cm³
Jabil Inc. JA3D-C1001138			TPE (Thermoplastic Elastomer)	Natural	2.85 mm	0.112 in		Elastomeric Wear & Friction			230 °C 270 °C	11 Mpa	1.05 g/cmł

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

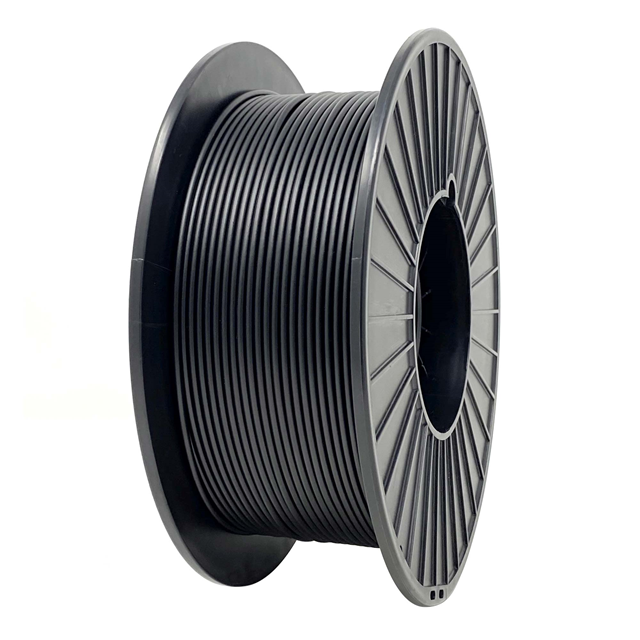

3D Printing Filament Black PC (Polycarbonate) 0.070" (1.75mm)
