JA3D-C1001031

Active

Jabil Inc.

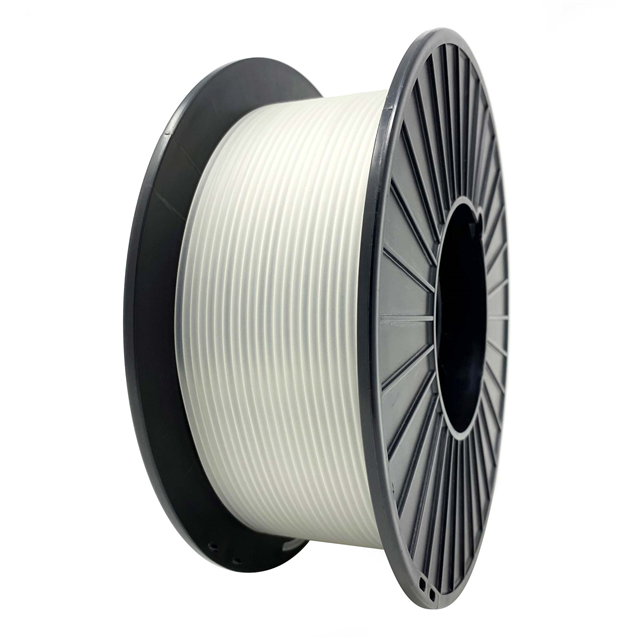

TPU 90A NAT 2.85MM, 1KG SPOOL

Search across all available documentation for this part.

Active

Jabil Inc.

TPU 90A NAT 2.85MM, 1KG SPOOL

Technical Specifications

Parameters and characteristics for this part

Specification	JA3D-C1001031

Color	Natural
Density	1.2 g/cm³
Features	Elastomeric, Wear & Friction
Filament Diameter [diameter]	2.85 mm
Filament Diameter [diameter]	0.112 in
Filament Material	TPU (Thermoplastic Polyurethane)
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	220 °C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Filament Material	Color	Filament Diameter [diameter]	Filament Diameter [diameter]	Flex Strength	Features	Density [Max]	Density [Min]	Operating Temperature [custom]	Tensile Strength	Density
Jabil Inc. JA3D-C1001032	240 °C	250 °C	PETG (Polyethylene Terephthalate Glycol-modified)	Natural	1.75 mm	0.07 in
Jabil Inc. JA3D-C1001068			ABS (Acrylonitrile Butadiene Styrene)	Black	1.75 mm	0.07 in	59.8 Mpa	Reinforced	1.12 g/cm³	1.1 g/cm³	275 °C 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001031	220 °C	230 °C	TPU (Thermoplastic Polyurethane)	Natural	2.85 mm	0.112 in		Elastomeric Wear & Friction					1.2 g/cm³
Jabil Inc. JA3D-C1001317			PA (Polyamide)	Blue	2.85 mm	0.112 in
Jabil Inc. JA3D-C1001029	240 °C	250 °C	PETG (Polyethylene Terephthalate Glycol-modified)	Natural	2.85 mm	0.112 in							1.24 g/cmł
Jabil Inc. JA3D-C1001055			ABS (Acrylonitrile Butadiene Styrene)	Natural	2.85 mm	0.112 in	59.8 Mpa	Reinforced	1.12 g/cm³	1.1 g/cm³	275 °C 295 °C	35.3 Mpa
Jabil Inc. JA3D-C1001073	285 °C	305 °C	PC (Polycarbonate)	Black	1.75 mm	0.07 in	93.9 Mpa	Flame-Retardant Wear & Friction				61 Mpa	1.18 g/cm³
Jabil Inc. JA3D-C1001135	240 °C	250 °C	TPE (Thermoplastic Elastomer)	Black	2.85 mm	0.112 in		Elastomeric Wear & Friction				6 Mpa	1.05 g/cmł
Jabil Inc. JA3D-C1001058	285 °C	305 °C	PC (Polycarbonate)	Natural	1.75 mm	0.07 in	93.9 Mpa	Flame-Retardant Wear & Friction				61 Mpa	1.18 g/cm³
Jabil Inc. JA3D-C1001138			TPE (Thermoplastic Elastomer)	Natural	2.85 mm	0.112 in		Elastomeric Wear & Friction			230 °C 270 °C	11 Mpa	1.05 g/cmł

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 73.12

General part information

3D Printing Filament Natural TPU (Thermoplastic Polyurethane) 0.112" (2.85mm)

Technical documentation and resources
