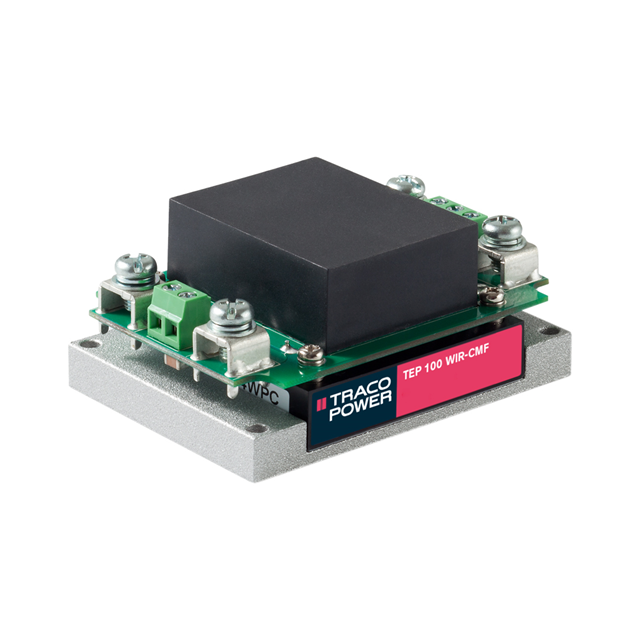

TEP 100-7213WIR-CMF

Active

Traco Power

DC/DC CONVERTER 15V 101W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TEP 100WIR Certs

TEP 100-7213WIR-CMF

Active

Traco Power

DC/DC CONVERTER 15V 101W

Deep-Dive with AI

DocumentsDatasheet TEP 100WIR Certs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 100-7213WIR-CMF

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	6.7 A
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	101 W
Size / Dimension [x]	85.1 mm, 3.35 "
Size / Dimension [y]	61 mm, 2.4 "
Size / Dimension [z]	1.33 ", 33.8 mm
Type	Enclosed
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

TEP 100 Series

Part	Power (Watts)	Features	Mounting Type	Package / Case	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency
Traco Power TEP 100-2412WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Isolated Module	90 %	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	36 V
Traco Power TEP 100-4818WIR-CMF	101 W		Chassis Mount		2.1 A	ITE (Commercial) Railway	2250 VDC	48 V	-40 °C	75 ¯C	Enclosed	91 %	18 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	75 V	CB CE cURus
Traco Power TEP 100-1213-CMF	101 W		Chassis Mount		6.7 A	ITE (Commercial)	2250 VDC	15 V	-40 °C	75 ¯C	Enclosed	91 %	9 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	18 V
Traco Power TEP 100-4812-CM	101 W		Chassis Mount		8.4 A	ITE (Commercial)	2250 VDC	12 V	-40 °C	75 ¯C	Enclosed	93 %	36 V	3.35 in	1.1 in	2.4 "	27.9 mm	61 mm	85.1 mm	1	75 V
Traco Power TEP 100-1216-CMF	101 W		Chassis Mount		3.6 A	ITE (Commercial)	2250 VDC	28 V	-40 °C	75 ¯C	Enclosed	90 %	9 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	18 V
Traco Power TEP 100-4812WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Isolated Module	90 %	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	75 V
Traco Power TEP 100-2416WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	3.6 A	ITE (Commercial) Railway	2250 VDC	28 V	-40 °C	75 ¯C	Isolated Module	90 %	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	36 V
Traco Power TEP 100-2418-CMF	101 W		Chassis Mount		2.1 A	ITE (Commercial)	2250 VDC	48 V	-40 °C	75 ¯C	Enclosed	92 %	18 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	36 V
Traco Power TEP 100-7213WIR-CMF	101 W		Chassis Mount		6.7 A	ITE (Commercial) Railway	3000 V	15 V	-40 °C	75 ¯C	Enclosed		43 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	160 V	CB CE cURus
Traco Power TEP 100-2412WIR-CM	101 W		Chassis Mount		8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Enclosed	90 %	9 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	36 V	CB CE cURus
