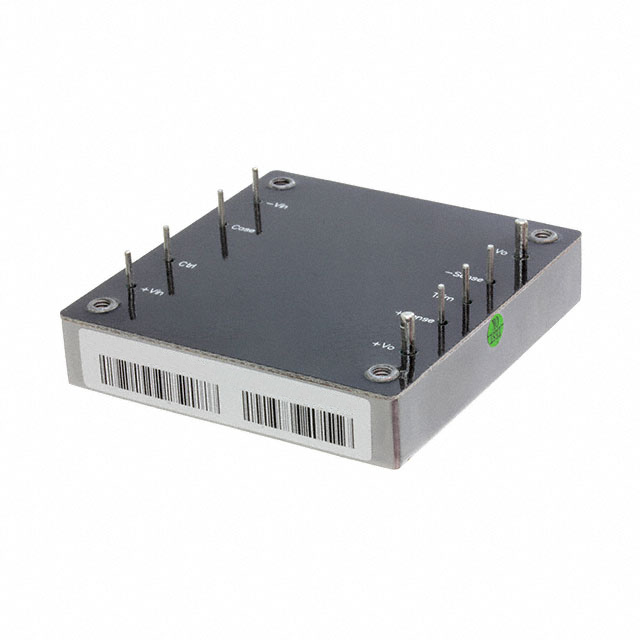

TEP 100-4812-CM

Active

Traco Power

DC/DC CONVERTER 12V 101W

Deep-Dive with AI

Search across all available documentation for this part.

TEP 100-4812-CM

Active

Traco Power

DC/DC CONVERTER 12V 101W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 100-4812-CM

Applications	ITE (Commercial)
Current - Output (Max) [Max]	8.4 A
Efficiency	93 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	101 W
Size / Dimension [x]	3.35 in
Size / Dimension [x]	85.1 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	27.9 mm
Size / Dimension [z]	1.1 in
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

TEP 100 Series

Part	Power (Watts)	Features	Mounting Type	Package / Case	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency
Traco Power TEP 100-2412WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Isolated Module	90 %	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	36 V
Traco Power TEP 100-4818WIR-CMF	101 W		Chassis Mount		2.1 A	ITE (Commercial) Railway	2250 VDC	48 V	-40 °C	75 ¯C	Enclosed	91 %	18 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	75 V	CB CE cURus
Traco Power TEP 100-1213-CMF	101 W		Chassis Mount		6.7 A	ITE (Commercial)	2250 VDC	15 V	-40 °C	75 ¯C	Enclosed	91 %	9 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	18 V
Traco Power TEP 100-4812-CM	101 W		Chassis Mount		8.4 A	ITE (Commercial)	2250 VDC	12 V	-40 °C	75 ¯C	Enclosed	93 %	36 V	3.35 in	1.1 in	2.4 "	27.9 mm	61 mm	85.1 mm	1	75 V
Traco Power TEP 100-1216-CMF	101 W		Chassis Mount		3.6 A	ITE (Commercial)	2250 VDC	28 V	-40 °C	75 ¯C	Enclosed	90 %	9 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	18 V
Traco Power TEP 100-4812WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Isolated Module	90 %	18 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	75 V
Traco Power TEP 100-2416WIR	101 W	OTP OVP Remote On/Off SCP UVLO	Through Hole	9-DIP Module	3.6 A	ITE (Commercial) Railway	2250 VDC	28 V	-40 °C	75 ¯C	Isolated Module	90 %	9 V	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	1	36 V
Traco Power TEP 100-2418-CMF	101 W		Chassis Mount		2.1 A	ITE (Commercial)	2250 VDC	48 V	-40 °C	75 ¯C	Enclosed	92 %	18 V	3.35 in	1.53 in	2.4 "	38.9 mm	61 mm	85.1 mm	1	36 V
Traco Power TEP 100-7213WIR-CMF	101 W		Chassis Mount		6.7 A	ITE (Commercial) Railway	3000 V	15 V	-40 °C	75 ¯C	Enclosed		43 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	160 V	CB CE cURus
Traco Power TEP 100-2412WIR-CM	101 W		Chassis Mount		8.4 A	ITE (Commercial) Railway	2250 VDC	12 V	-40 °C	75 ¯C	Enclosed	90 %	9 V				1.33 " 33.8 mm	2.4 " 61 mm	3.35 " 85.1 mm	1	36 V	CB CE cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 227.40

Description

General part information

TEP 100 Series

Enclosed DC DC Converter 1 Output 12V 8.4A 75V Input

Documents

Technical documentation and resources

No documents available
