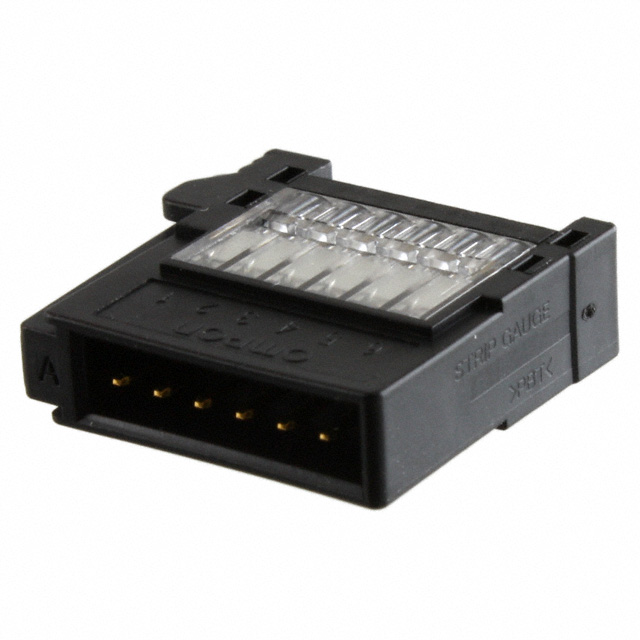

XN2A-1670
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 6POS IDC 20-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XN2A-1670
ActiveOmron Electronics Inc-EMC Div
CONN PLUG 6POS IDC 20-28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XN2A-1670 |
|---|---|
| Cable Termination | Spring Clamp |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.53 | |
| 10 | $ 9.40 | |||
| 25 | $ 9.27 | |||
| 50 | $ 9.14 | |||
| 108 | $ 9.01 | |||
| 324 | $ 8.24 | |||
| 540 | $ 7.72 | |||
| 1080 | $ 7.21 | |||
Description
General part information
XN2A Series
6 Position Rectangular Plug Connector Spring Clamp Gold 20-28 AWG
