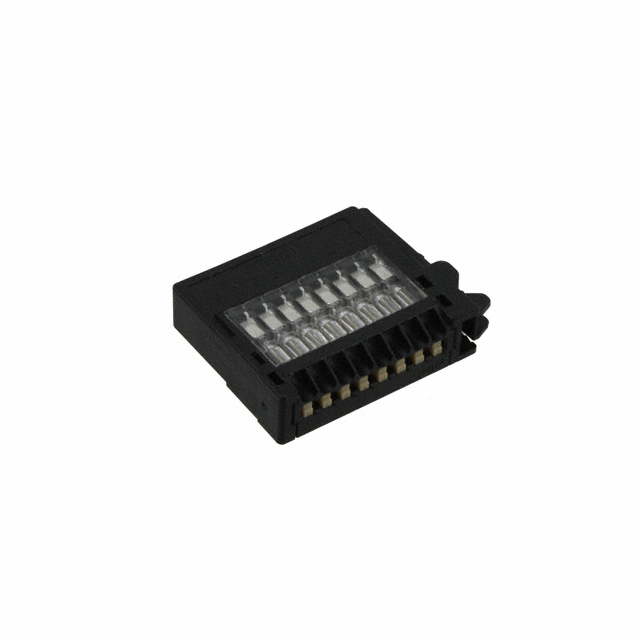

XN2A-1870
ActiveOmron Electronics Inc-EMC Div
BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, LOCKING, BLACK INSULATOR, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
XN2A-1870
ActiveOmron Electronics Inc-EMC Div
BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), MALE, 0.079 INCH PITCH, LOCKING, BLACK INSULATOR, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XN2A-1870 |
|---|---|
| Cable Termination | Spring Clamp |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.14 | |
| 10 | $ 10.99 | |||
| 25 | $ 10.84 | |||
| 90 | $ 10.69 | |||
| 180 | $ 10.54 | |||
| 270 | $ 9.63 | |||
| 540 | $ 9.03 | |||
| 1080 | $ 8.43 | |||
Description
General part information
XN2A Series
8 Position Rectangular Plug Connector Spring Clamp Gold 20-28 AWG
