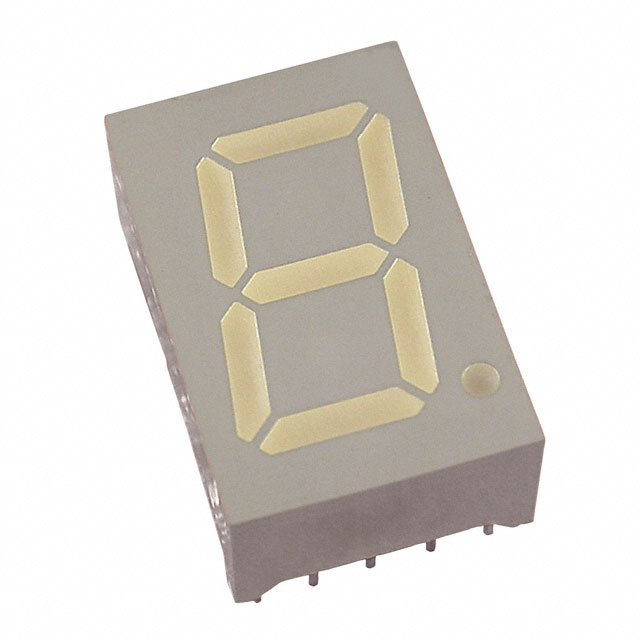

XDUG14A

Active

SunLED

DISPLAY 7SEG 0.56" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUG14A

Active

SunLED

DISPLAY 7SEG 0.56" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUG14A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	11 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	0.75 in
Size / Dimension [x]	19.05 mm
Size / Dimension [y]	12.7 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	565 nm

XDUG14 Series

Part	Color	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Wavelength - Peak	Common Pin	Display Type	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Power Dissipation (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters
SunLED XDUG14A	Green	11 mcd	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	565 nm	Common Anode	7-Segment	0.6 in	15.24 mm	10-DIP	0.56 in	14.22 mm	1	62.5 mW	10 mA	2 V
SunLED XDUG14A4-1A	Green	4 mcd	50.3 mm	0.748 in	19 mm	8.1 mm	0.319 in	1.98 in	565 nm	Common Anode	7-Segment	0.6 in	15.24 mm	12-DIP	0.56 in	14.22 mm		62.5 mW	10 mA	2 V	4
SunLED XDUG14A4-A	Green	4 mcd	50.3 mm	0.748 in	19 mm	8.1 mm	0.319 in	1.98 in	565 nm	Common Anode	7-Segment	0.6 in	15.24 mm	12-DIP	0.56 in	14.22 mm		62.5 mW	10 mA	2 V	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.70
		40	$ 1.01
		120	$ 0.90
		520	$ 0.78
		1000	$ 0.74
		2000	$ 0.71
		5000	$ 0.67
		10000	$ 0.64

Description

General part information

XDUG14 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2V 10mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
