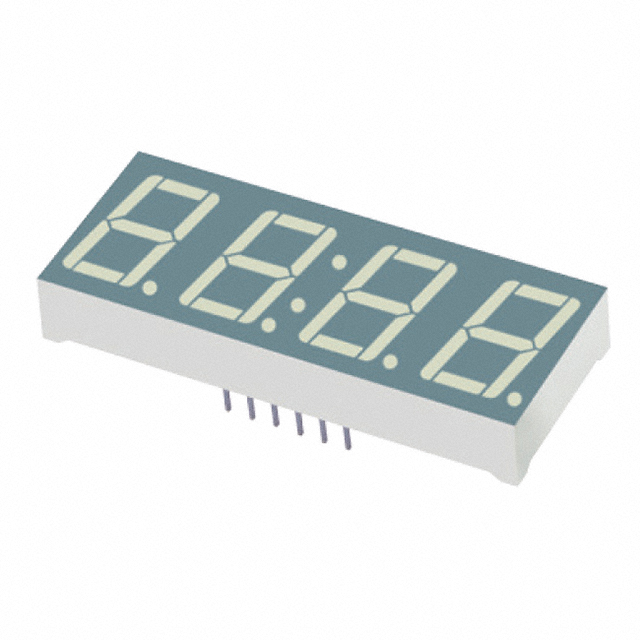

XDUG14A4-A
ActiveSunLED
DISP 7SEG 0.56" QUAD GRN 12DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XDUG14A4-A
ActiveSunLED
DISP 7SEG 0.56" QUAD GRN 12DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XDUG14A4-A |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 4 mcd |
| Number of Characters | 4 |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 12-DIP |
| Power Dissipation (Max) [Max] | 62.5 mW |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [x] | 19 mm |
| Size / Dimension [y] | 50.3 mm |
| Size / Dimension [y] | 1.98 in |
| Size / Dimension [z] | 0.319 in |
| Size / Dimension [z] | 8.1 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 200 | $ 4.47 | |
Description
General part information
XDUG14 Series
Display Modules - LED Character and Numeric Green 7-Segment 4 Character Common Anode 2V 10mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 12-DIP (0.600", 15.24mm)
