1003-001-01000

Active

CnC Tech, LLC

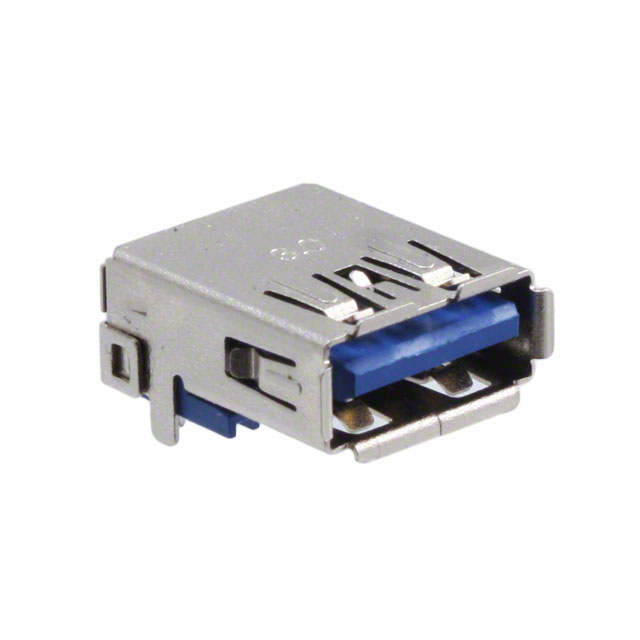

CONN RCPT USB3.0 TYPEA 9POS R/A

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB3.0 TYPEA 9POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1003-001-01000

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Shell/Shielding Material	Brass
Termination	Solder

Part	Mounting Feature	Shell/Shielding Material	Gender	Connector Type	Number of Ports	Material Flammability Rating	Mounting Type	Contact Finish	Termination	Number of Contacts	Mating Cycles	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
CnC Tech, LLC 1003-001-01000	Horizontal	Brass	Receptacle	USB-A (USB TYPE-A)	1	UL94 V-0	Through Hole Right Angle	Gold	Solder	9
CnC Tech, LLC 1003-001-0100180	Vertical	Brass Steel	Receptacle	USB-A (USB TYPE-A)	1	UL94 V-0	Through Hole	Gold	Solder	9	5000	1.5 A	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
