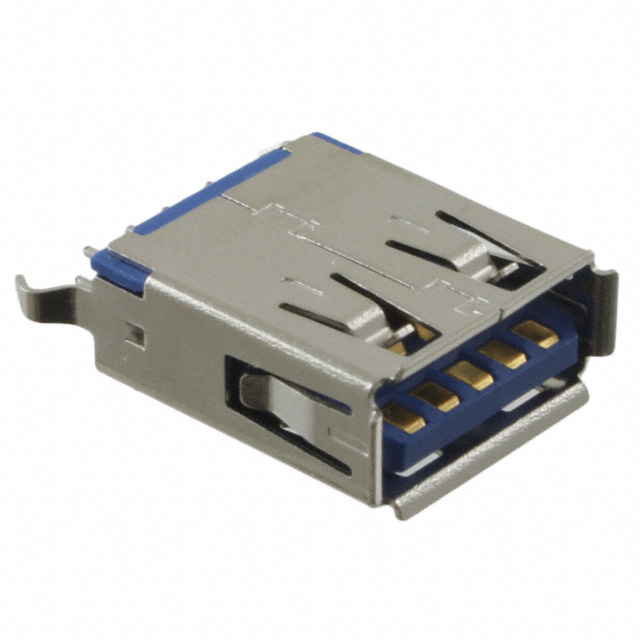

1003-001-0100180 - 1003-001-0100180

1003-001-0100180

Active
CnC Tech, LLC

CONN RCPT USB3.0 TYPEA 9POS VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSoldering Recommendations for USBs+1
1003-001-0100180 - 1003-001-0100180

1003-001-0100180

Active
CnC Tech, LLC

CONN RCPT USB3.0 TYPEA 9POS VERT

Deep-Dive with AI

DocumentsDatasheetSoldering Recommendations for USBs+1

Technical Specifications

Parameters and characteristics for this part

Specification1003-001-0100180
Connector TypeUSB-A (USB TYPE-A)
Contact FinishGold
Current Rating (Amps)1.5 A
GenderReceptacle
Material Flammability RatingUL94 V-0
Mating Cycles5000
Mounting FeatureVertical
Mounting TypeThrough Hole
Number of Contacts9
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Shell/Shielding MaterialSteel, Brass
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.94
10$ 1.69
25$ 1.61
40$ 1.58
80$ 1.51
230$ 1.36
440$ 1.25
2000$ 1.04
4000$ 1.00

Description

General part information

1003-001 Series

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole
