53112876

Active

LAPP

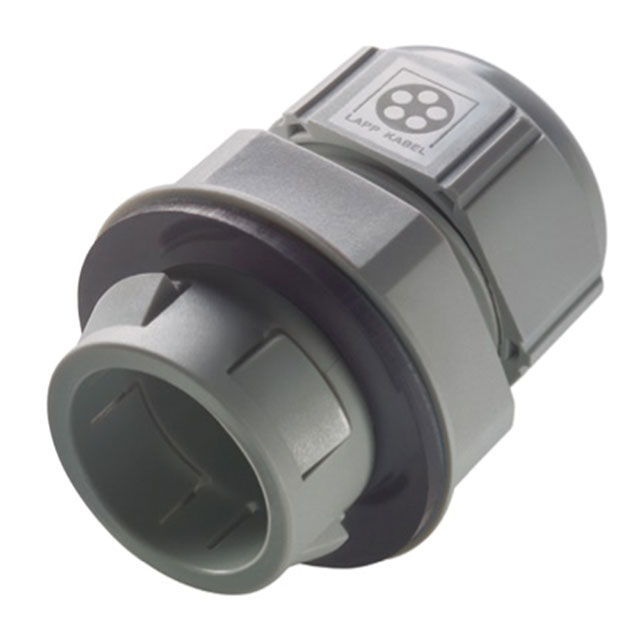

CABLE GLAND 5-10MM M16 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSkintop®Click(R) Instruction Sheet Datasheet

53112876

Active

LAPP

CABLE GLAND 5-10MM M16 POLYAMIDE

Deep-Dive with AI

DocumentsSkintop®Click(R) Instruction Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53112876

Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	16.3 mm
Panel Hole Size	0.642 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M16
Type	Cable Gland

53112 Series

Part	Type	Thread Size	Material	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [x]	Panel Hole Size [x]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size
LAPP 53112260	Cable Gland	PG29	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof	100 °C	-40 °C	8 mm	0.315 in	0.63 in	16 mm	0.984 in	25 mm	O-Ring
LAPP 53112931	Cable Gland	M32	Polyamide (PA) Nylon	Black	IP68 - Dust Tight Waterproof	100 °C	-40 °C	32.31 mm	1.272 in			0.591 in			15 mm	7 mm	0.276 in	32.3 mm	1.272 in
LAPP 53112040	Cable Gland	M32x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	9 mm	0.354 in			0.827 in		O-Ring	21 mm		0.433 in			11 mm
LAPP 53112100	Cable Gland	M12x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	6.5 mm	0.256 in	0.078 in		0.197 in		O-Ring	5 mm	1.98 mm
LAPP 53112120	Cable Gland	M20x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	8 mm	0.315 in	0.197 in	5 mm	0.394 "		O-Ring	10 mm
LAPP 53112130	Cable Gland	M25x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	8 mm	0.315 in			0.512 in		O-Ring	13 mm		0.236 in			6 mm
LAPP 53112927	Cable Gland	M12	Polyamide (PA) Nylon	Gray	IP68 - Dust Tight Waterproof	100 °C	-40 °C	12.29 mm	0.484 "			0.197 in			5 mm		0.139 in			3.52 mm
LAPP 53112886	Cable Gland	M20	Polyamide (PA) Nylon	Black	IP68 - Dust Tight Waterproof	100 °C	-40 °C	20.3 mm	0.799 in	0.197 in	5 mm	0.394 "			10 mm						20.3 mm	0.8 in
LAPP 53112026	Cable Gland	1/2" NPT	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 1 NEMA 12 NEMA 4X NEMA 6	100 °C	-40 °C	15 mm	0.591 in	0.197 in	5 mm	0.394 "		O-Ring	10 mm
LAPP 53112876	Cable Gland	M16	Polyamide (PA) Nylon	Gray	IP68 - Dust Tight Waterproof	100 °C	-40 °C	8 mm	0.315 in	0.197 in	5 mm	0.394 "			10 mm						16.3 mm	0.642 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.67
		10	$ 3.34
		25	$ 3.16
		50	$ 3.09
		100	$ 2.94
		250	$ 2.59

Description

General part information

53112 Series

Cable Gland Polyamide (PA), Nylon M16 Gray

Documents

Technical documentation and resources

Skintop®Click(R) Instruction Sheet

Datasheet
