53112886

Active

LAPP

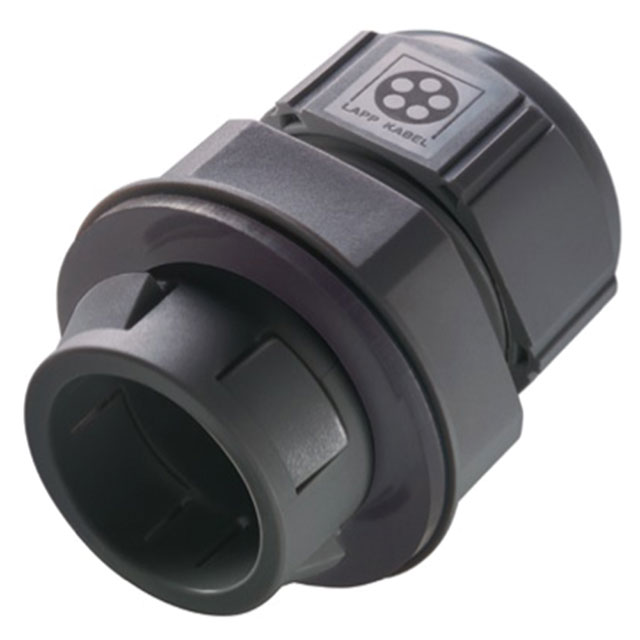

CABLE GLAND 5-10MM M20 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

53112886

Active

LAPP

CABLE GLAND 5-10MM M20 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53112886

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	20.3 mm
Panel Hole Size	0.8 in
Thread Length	0.799 in
Thread Length	20.3 mm
Thread Size	M20
Type	Cable Gland

53112 Series

Part	Type	Thread Size	Material	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [x]	Panel Hole Size [x]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size
LAPP 53112260	Cable Gland	PG29	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof	100 °C	-40 °C	8 mm	0.315 in	0.63 in	16 mm	0.984 in	25 mm	O-Ring
LAPP 53112931	Cable Gland	M32	Polyamide (PA) Nylon	Black	IP68 - Dust Tight Waterproof	100 °C	-40 °C	32.31 mm	1.272 in			0.591 in			15 mm	7 mm	0.276 in	32.3 mm	1.272 in
LAPP 53112040	Cable Gland	M32x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	9 mm	0.354 in			0.827 in		O-Ring	21 mm		0.433 in			11 mm
LAPP 53112100	Cable Gland	M12x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	6.5 mm	0.256 in	0.078 in		0.197 in		O-Ring	5 mm	1.98 mm
LAPP 53112120	Cable Gland	M20x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	8 mm	0.315 in	0.197 in	5 mm	0.394 "		O-Ring	10 mm
LAPP 53112130	Cable Gland	M25x1.5	Brass Nickel Plated	Silver	IP68/IP69 - Dust Tight Water Resistant Waterproof NEMA 1 4 6 12	100 °C	-40 °C	8 mm	0.315 in			0.512 in		O-Ring	13 mm		0.236 in			6 mm
LAPP 53112927	Cable Gland	M12	Polyamide (PA) Nylon	Gray	IP68 - Dust Tight Waterproof	100 °C	-40 °C	12.29 mm	0.484 "			0.197 in			5 mm		0.139 in			3.52 mm
LAPP 53112886	Cable Gland	M20	Polyamide (PA) Nylon	Black	IP68 - Dust Tight Waterproof	100 °C	-40 °C	20.3 mm	0.799 in	0.197 in	5 mm	0.394 "			10 mm						20.3 mm	0.8 in
LAPP 53112026	Cable Gland	1/2" NPT	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 1 NEMA 12 NEMA 4X NEMA 6	100 °C	-40 °C	15 mm	0.591 in	0.197 in	5 mm	0.394 "		O-Ring	10 mm
LAPP 53112876	Cable Gland	M16	Polyamide (PA) Nylon	Gray	IP68 - Dust Tight Waterproof	100 °C	-40 °C	8 mm	0.315 in	0.197 in	5 mm	0.394 "			10 mm						16.3 mm	0.642 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.48
		25	$ 4.71
		100	$ 4.38
		1000	$ 3.18

Description

General part information

53112 Series

Cable Gland Polyamide (PA), Nylon M20 Black
