LBW7L-M1T54G

Active

IDEC

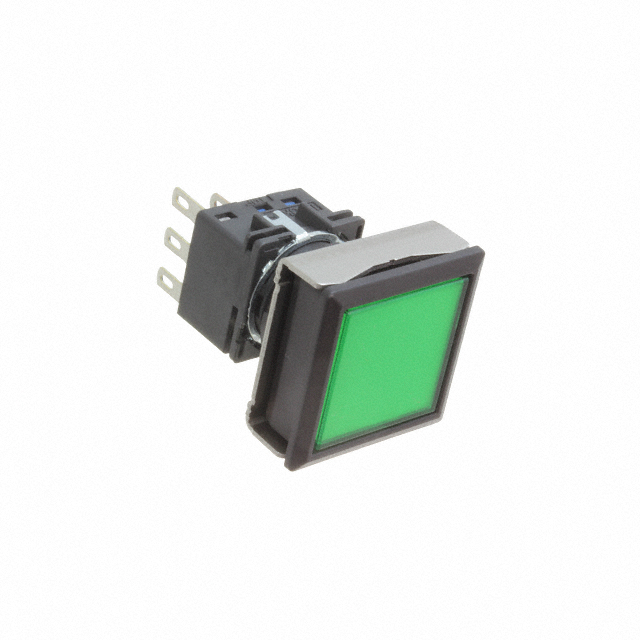

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, SPDT, MOMENTARY, SQUARE FLUSH, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

LBW7L-M1T54G

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, SPDT, MOMENTARY, SQUARE FLUSH, TRANSPARENT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LBW7L-M1T54G

Actuator Marking	No Marking
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LBW7L Series

Part	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mechanical Life	Illumination Voltage (Nominal)	Electrical Life	Mounting Type	Circuit	Voltage Rating - AC	Switch Function	Ingress Protection	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Type	Illumination Type, Color	Termination Style	Termination Style
IDEC LBW7L-M1T14VPW	PC Pin	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White
IDEC LBW7L-M1T24R	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm
IDEC LBW7L-M1T24S	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Blue LED	0.11 in	2.8 mm
IDEC LBW7L-M1T24VR	PC Pin	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red
IDEC LBW7L-M1T54G	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Green LED	0.11 in	2.8 mm
IDEC LBW7L-A1T54PW	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White	0.11 in	2.8 mm
IDEC LBW7L-M1T14W	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White	0.11 in	2.8 mm
IDEC LBW7L-A1T24R	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm
IDEC LBW7L-A1T64A	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Amber LED	0.11 in	2.8 mm
IDEC LBW7L-M1T64R	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.97
Newark	Each	1	$ 49.93
		5	$ 46.13
		10	$ 42.77
		25	$ 39.41
		50	$ 36.95
		100	$ 34.93
		250	$ 31.80

Description

General part information

LBW7L Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
