LBW7L-M1T64R

Active

IDEC

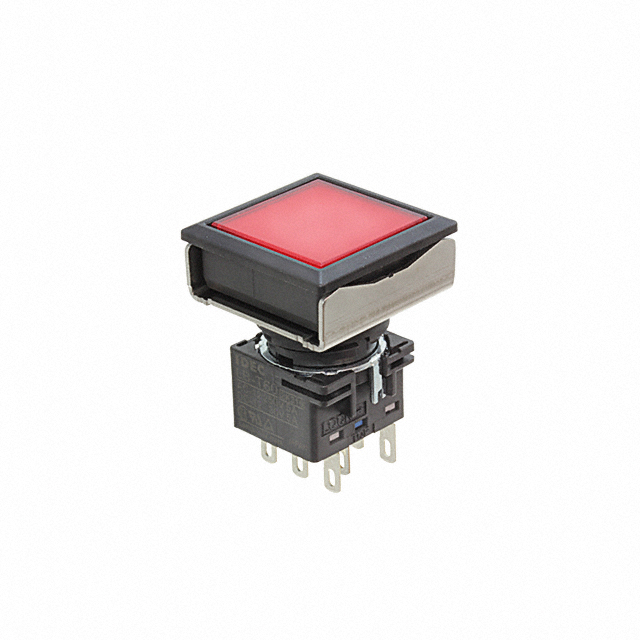

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, DPDT, MOMENTARY, SQUARE FLUSH, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LBW7L-M1T64R

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, DPDT, MOMENTARY, SQUARE FLUSH, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LBW7L-M1T64R

Actuator Marking	No Marking
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LBW7L Series

Part	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mechanical Life	Illumination Voltage (Nominal)	Electrical Life	Mounting Type	Circuit	Voltage Rating - AC	Switch Function	Ingress Protection	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Type	Illumination Type, Color	Termination Style	Termination Style
IDEC LBW7L-M1T14VPW	PC Pin	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White
IDEC LBW7L-M1T24R	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm
IDEC LBW7L-M1T24S	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Blue LED	0.11 in	2.8 mm
IDEC LBW7L-M1T24VR	PC Pin	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red
IDEC LBW7L-M1T54G	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Green LED	0.11 in	2.8 mm
IDEC LBW7L-A1T54PW	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White	0.11 in	2.8 mm
IDEC LBW7L-M1T14W	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	SPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	White	Illuminated Standard	LED White	0.11 in	2.8 mm
IDEC LBW7L-A1T24R	Quick Connect Solder	100 mA	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm
IDEC LBW7L-A1T64A	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	250000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-On	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	Amber LED	0.11 in	2.8 mm
IDEC LBW7L-M1T64R	Quick Connect Solder	5 A	55 °C	-25 °C	30 V	2000000 Cycles	24 VAC/DC	50000 Cycles	Panel Mount Front	DPDT	125 V	On-Mom	IP65 - Dust Tight Water Resistant	No Marking	22.5 mm	22.5 mm	Clear	Illuminated Standard	LED Red	0.11 in	2.8 mm
