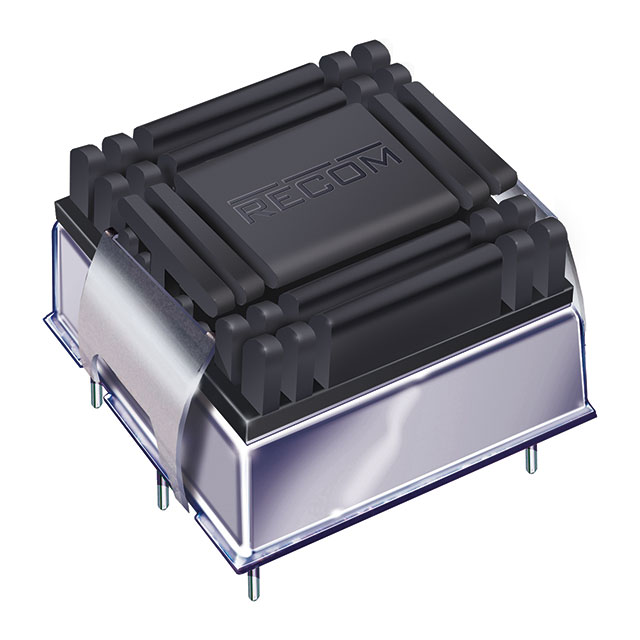

RP10-4815DAW/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-75VIN +/-15VOUT +/-333MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP10-4815DAW/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-75VIN +/-15VOUT +/-333MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP10-4815DAW/N-HC

Applications	ITE (Commercial)
Approval Agency	cURus, EAC
Control Features	Active Low, Enable
Current - Output (Max)	333 mA
Current - Output (Max)	333 mA
Efficiency	89 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	81 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

RP10-4815 Series

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 4:1 9-36Vin 3.3Vout

...

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Control Features	Applications	Mounting Type	Features	Number of Outputs	Voltage - Output 2	Package / Case	Type	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Approval Agency	Package / Case
RECOM Power RP10-4812DEW/P/M2-HC	1.6 kV	85 °C	-40 °C	18 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	2	-12 V	6-DIP Module	Isolated Module	10 W	78 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	12 V	416 mA
RECOM Power RP10-4815DAW/N-HC	1.6 kV	81 °C	-40 °C	18 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	2	-15 V	6-DIP Module	Isolated Module	10 W	89 %	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	75 V	15 V		333 mA	333 mA	cURus EAC
RECOM Power RP10-4805DEW	1.6 kV	85 °C	-25 °C	18 V		ITE (Commercial)	Through Hole	OCP OVP SCP	2	-5 V	6-DIP Module	Isolated Module	10 W	81 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	5 V		1 A	1 A
RECOM Power RP10-2415SE	1.6 kV	85 °C	-25 °C	18 V		ITE (Commercial)	Through Hole	OCP OVP SCP	1		6-DIP Module	Isolated Module	10 W	84 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	15 V	670 mA
RECOM Power RP10-2415SAW/XC	1.6 kV	81 °C	-40 °C	9 V		ITE (Commercial)	Through Hole	OCP OVP SCP UVLO	1		6-DIP Module	Isolated Module	10 W	91 %	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	36 V	15 V	670 mA			cURus EAC	5 Leads
RECOM Power RP10-2415DEW	1.6 kV	85 °C	-25 °C	9 V		ITE (Commercial)	Through Hole	OCP OVP SCP	2	-15 V	6-DIP Module	Isolated Module	10 W	80 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	15 V		333 mA	333 mA
RECOM Power RP10-2405SEW/P	1.6 kV	85 °C	-25 °C	9 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	1		6-DIP Module	Isolated Module	10 W	80 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	5 V	2 A
RECOM Power RP10-4815DE/P	1.6 kV	85 °C	-25 °C	36 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	2	-15 V	6-DIP Module	Isolated Module	10 W	84 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	15 V		333 mA	333 mA
RECOM Power RP10-2405DEW	1.6 kV	85 °C	-25 °C	9 V		ITE (Commercial)	Through Hole	OCP OVP SCP	2	-5 V	6-DIP Module	Isolated Module	10 W	80 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	5 V		1 A	1 A
RECOM Power RP10-2415SA/N-HC	1.6 kV	80 C	-40 °C	18 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	1		6-DIP Module	Isolated Module	10 W	90 %	25.4 mm	0.65 in	1 in	16.5 mm	25.4 mm	25.4 mm	36 V	15 V	670 mA
