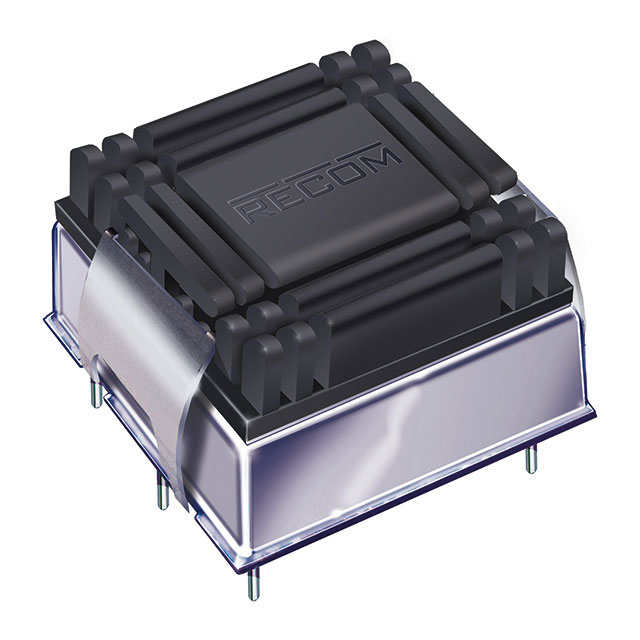

RP10-2415SA/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-36VIN 15VOUT 670MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP10-2415SA/N-HC

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 18-36VIN 15VOUT 670MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP10-2415SA/N-HC

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	670 mA
Efficiency	90 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.65 in
Size / Dimension [z]	16.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

RP10-123.3 Series

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 2:1 9-18Vin 3.3Vout

...

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Control Features	Applications	Mounting Type	Features	Number of Outputs	Voltage - Output 2	Package / Case	Type	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Package / Case	Approval Agency
RECOM Power RP10-4812DEW/P/M2-HC	1.6 kV	85 °C	-40 °C	18 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	2	-12 V	6-DIP Module	Isolated Module	10 W	78 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	75 V	12 V	416 mA
RECOM Power RP10-123.3SE/P	1.6 kV	85 °C	-25 °C	9 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	1		6-DIP Module	Isolated Module	10 W	80 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	3.3 V	2 A
RECOM Power RP10-2412DE/N/M1	1.6 kV	85 °C	-40 °C	18 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	2	-12 V	6-DIP Module	Isolated Module	10 W	84 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	12 V	416 mA
RECOM Power RP10-2412SE	1.6 kV	85 °C	-25 °C	18 V		ITE (Commercial)	Through Hole	OCP OVP SCP	1		6-DIP Module	Isolated Module	10 W	84 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	36 V	12 V	830 mA
RECOM Power RP10-123.3SE/N/M1	1.6 kV	85 °C	-40 °C	9 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP	1		6-DIP Module	Isolated Module	10 W	80 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	18 V	3.3 V	2 A
RECOM Power RP10-2415SA/N-HC	1.6 kV	80 C	-40 °C	18 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	1		6-DIP Module	Isolated Module	10 W	90 %	25.4 mm	0.65 in	1 in	16.5 mm	25.4 mm	25.4 mm	36 V	15 V	670 mA
RECOM Power RP10-1212DA/XC-HC	1.6 kV	80 C	-40 °C	9 V		ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	2	-12 V	6-DIP Module	Isolated Module	10 W	89 %	25.4 mm	0.65 in	1 in	16.5 mm	25.4 mm	25.4 mm	18 V	12 V	416 mA	5 Leads
RECOM Power RP10-2412SA/P	1.6 kV	80 C	-40 °C	18 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	1		6-DIP Module	Isolated Module	10 W	91 %	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	36 V	12 V	830 mA
RECOM Power RP10-2405SA/N-HC	1.6 kV	80 C	-40 °C	18 V	Active Low Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	1		6-DIP Module	Isolated Module	10 W	86 %	25.4 mm	0.65 in	1 in	16.5 mm	25.4 mm	25.4 mm	36 V	5 V	2 A
RECOM Power RP10-4812SAW/P	1.6 kV	81 °C	-40 °C	18 V	Active High Enable	ITE (Commercial)	Through Hole	OCP OVP Remote On/Off SCP UVLO	1		6-DIP Module	Isolated Module	10 W	90 %	25.4 mm	0.39 in	1 in	9.9 mm	25.4 mm	25.4 mm	75 V	12 V	830 mA		cURus EAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 60.73
Sager	N/A	1	$ 64.69
		5	$ 60.64
		10	$ 57.07
		25	$ 53.15
		50	$ 51.07
		100	$ 49.75
		250	$ 47.33

Description

General part information

RP10-123.3 Series

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 2:1 9-18Vin 3.3Vout
