DF11Z-8DS-2V(52)

Obsolete

Hirose Electric USA, Inc.

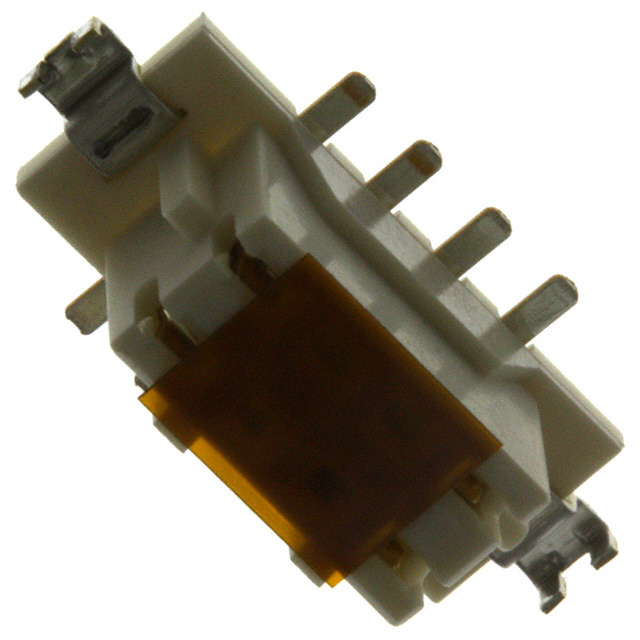

CONN RCPT 8POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF11Z-8DS-2V(52)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 8POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11Z-8DS-2V(52)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Friction Lock
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	5.95 mm
Insulation Height	0.234 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.2 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11Z Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Number of Rows	Features	Insulation Material	Number of Positions	Connector Type	Current Rating (Amps)	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Material	Material Flammability Rating	Fastening Type	Contact Shape	Applications	Style	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mated Stacking Heights	Contact Finish - Mating	Shrouding
Hirose Electric USA, Inc. DF11Z-4DS-2V(20)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	4	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	1 µm	39.4 µin	Beige	7.55 mm 8.2 mm
Hirose Electric USA, Inc. DF11Z-24DS-2V(22)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	24	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-30DS-2V(50)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	30	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-28DS-2V(50)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	28	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-4DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	4	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-10DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	10	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-26DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	26	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-18DP-2V(21)
Hirose Electric USA, Inc. DF11Z-8DS-2V(52)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	8	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-10DP-2V(21)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	10	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Natural	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF11Z Series

8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
