DF11Z-4DP-2V(27)

Active

Hirose Electric USA, Inc.

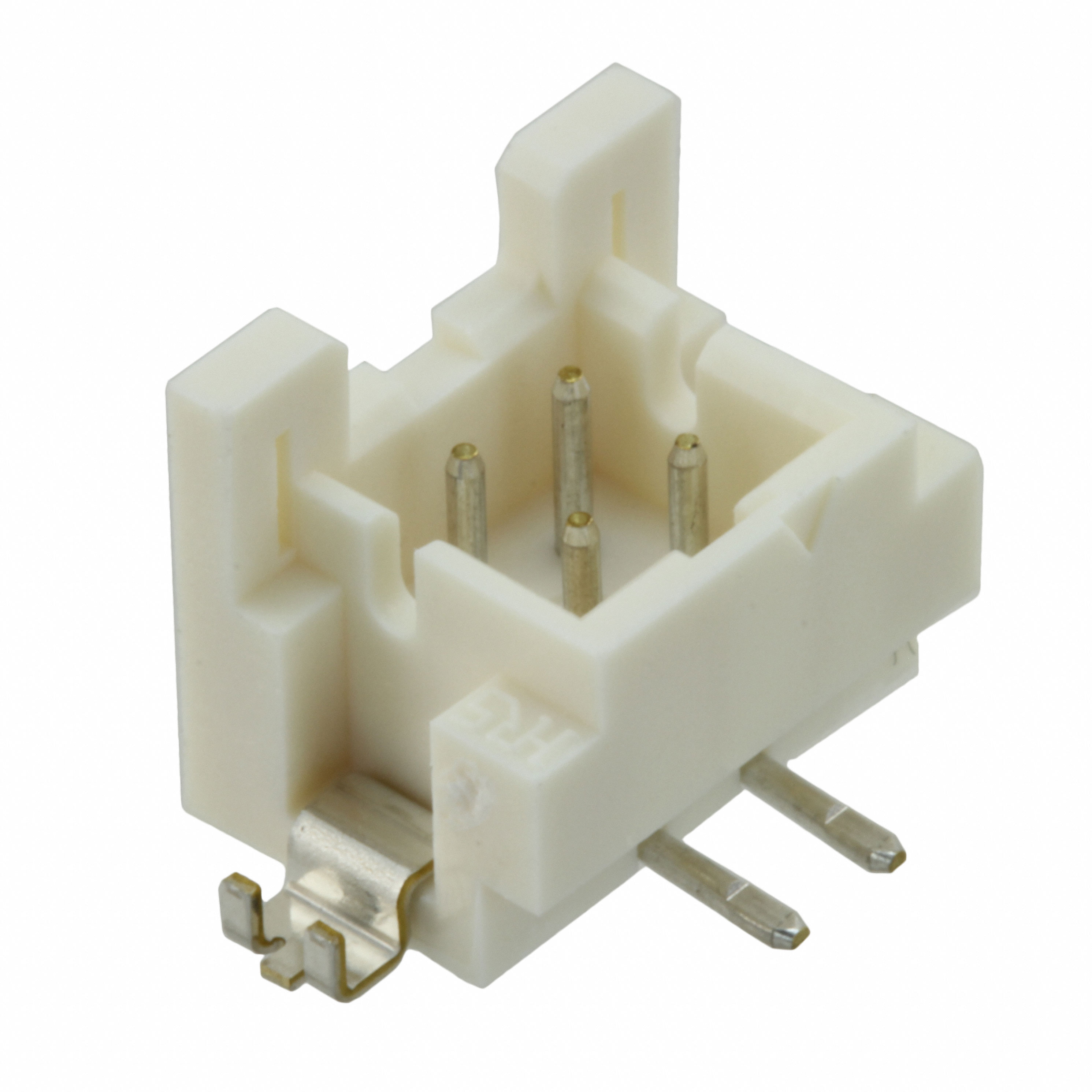

CONN HEADER SMD 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF11Z-4DP-2V(27)

Active

Hirose Electric USA, Inc.

CONN HEADER SMD 4POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11Z-4DP-2V(27)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Beige
Insulation Height	0.283 "
Insulation Height	7.19 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.2 mm, 9.55 mm, 8.45 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11Z Series

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Number of Rows	Features	Insulation Material	Number of Positions	Connector Type	Current Rating (Amps)	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Material	Material Flammability Rating	Fastening Type	Contact Shape	Applications	Style	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mated Stacking Heights	Contact Finish - Mating	Shrouding
Hirose Electric USA, Inc. DF11Z-4DS-2V(20)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	4	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	1 µm	39.4 µin	Beige	7.55 mm 8.2 mm
Hirose Electric USA, Inc. DF11Z-24DS-2V(22)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	24	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-30DS-2V(50)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	30	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-28DS-2V(50)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	28	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-4DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	4	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-10DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	10	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-26DP-2V(27)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Pick and Place Solder Retention	Nylon Polyamide (PA)	26	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Beige	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall
Hirose Electric USA, Inc. DF11Z-18DP-2V(21)
Hirose Electric USA, Inc. DF11Z-8DS-2V(52)	Surface Mount	-30 ░C	85 °C	5.95 mm	0.234 in	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	8	Receptacle	2 A	Female Socket	0.079 in	2 mm	Tin	Phosphor Bronze	UL94 V-0	Friction Lock	Square	General Purpose	Board to Board Cable	250 VDC	2 çm	78.7 çin	0.079 in	2 mm	All	0.203 Ám	8 Áin	Beige	7.55 mm 8.2 mm	Gold
Hirose Electric USA, Inc. DF11Z-10DP-2V(21)	Surface Mount	-30 ░C	85 °C	7.19 mm	0.283 "	Solder	2	Board Guide Solder Retention	Nylon Polyamide (PA)	10	Header	2 A	Male Pin	0.079 in	2 mm	Tin	Brass	UL94 V-0	Detent Lock	Circular		Board to Board Cable	250 VDC			0.079 in	2 mm	All	1 µm	39.4 µin	Natural	8.2 mm 8.45 mm 9.55 mm		Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.17
		10	$ 0.99
		100	$ 0.89
	Digi-Reel®	1	$ 1.17
		10	$ 0.99
		100	$ 0.89
	Tape & Reel (TR)	500	$ 0.55
		1000	$ 0.51
		1500	$ 0.49
		2500	$ 0.47
		3500	$ 0.46
