TL6200ABF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

TL6200ABF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL6200ABF300QP

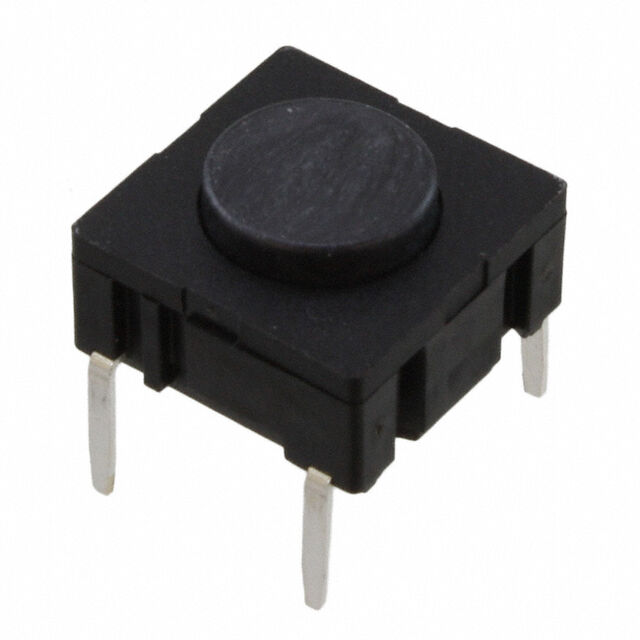

Actuator Height off PCB, Vertical [z]	6.4 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Black Cap
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

TL6200 Series

Part	Illumination	Mounting Type	Switch Travel	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Operating Force	Contact Rating @ Voltage	Termination Style	Actuator Height off PCB, Vertical [z]	Switch Function	Actuator Orientation	Outline [x]	Outline [y]	Features	Actuator Type	Mechanical Life	Actuator Height off PCB, Vertical
E-Switch TL6200AWF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing	6.4 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm	White Cap	Round Button	10000000 Cycles
E-Switch TL6200ABF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin	6.4 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm	Black Cap	Round Button	10000000 Cycles
E-Switch TL6200BBF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin	8 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles
E-Switch TL6200CBF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing		Off-Mom	Top Actuated	10.1 mm	10.1 mm	Black Cap	Round Button	10000000 Cycles	9.5 mm
E-Switch TL6200CBF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin		Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles	9.5 mm
E-Switch TL6200DBF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing		Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles	10.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	540	$ 3.08

Description

General part information

TL6200 Series

Tactile Switch SPST-NO Top Actuated Through Hole
