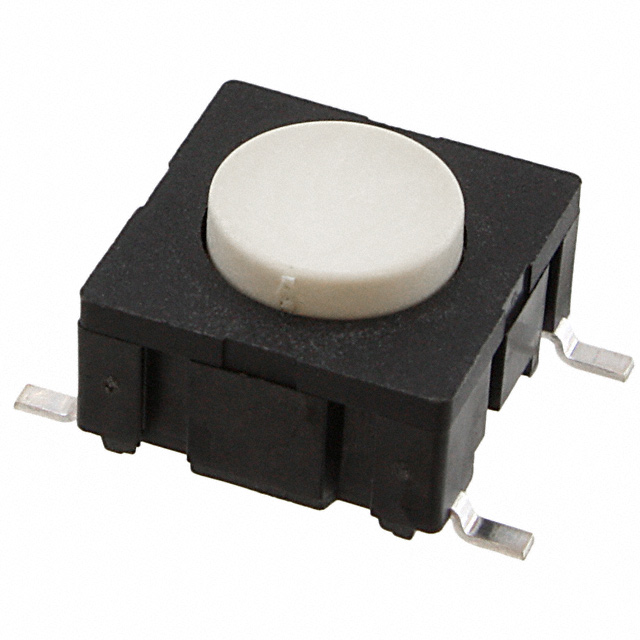

TL6200AWF300QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL6200AWF300QG

Actuator Height off PCB, Vertical [z]	6.4 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	White Cap
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Surface Mount
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	Gull Wing

TL6200 Series

Part	Illumination	Mounting Type	Switch Travel	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Operating Force	Contact Rating @ Voltage	Termination Style	Actuator Height off PCB, Vertical [z]	Switch Function	Actuator Orientation	Outline [x]	Outline [y]	Features	Actuator Type	Mechanical Life	Actuator Height off PCB, Vertical
E-Switch TL6200AWF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing	6.4 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm	White Cap	Round Button	10000000 Cycles
E-Switch TL6200ABF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin	6.4 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm	Black Cap	Round Button	10000000 Cycles
E-Switch TL6200BBF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin	8 mm	Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles
E-Switch TL6200CBF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing		Off-Mom	Top Actuated	10.1 mm	10.1 mm	Black Cap	Round Button	10000000 Cycles	9.5 mm
E-Switch TL6200CBF300QP	Non-Illuminated	Through Hole	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	PC Pin		Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles	9.5 mm
E-Switch TL6200DBF300QG	Non-Illuminated	Surface Mount	1 mm	SPST-NO	85 °C	-40 °C	IP67 - Dust Tight Waterproof	300 gf	0.05 A 24 VDC	Gull Wing		Off-Mom	Top Actuated	10.1 mm	10.1 mm		Round Button	10000000 Cycles	10.4 mm
