V15T22-EC200

Active

Honeywell Sensing and Productivity Solutions

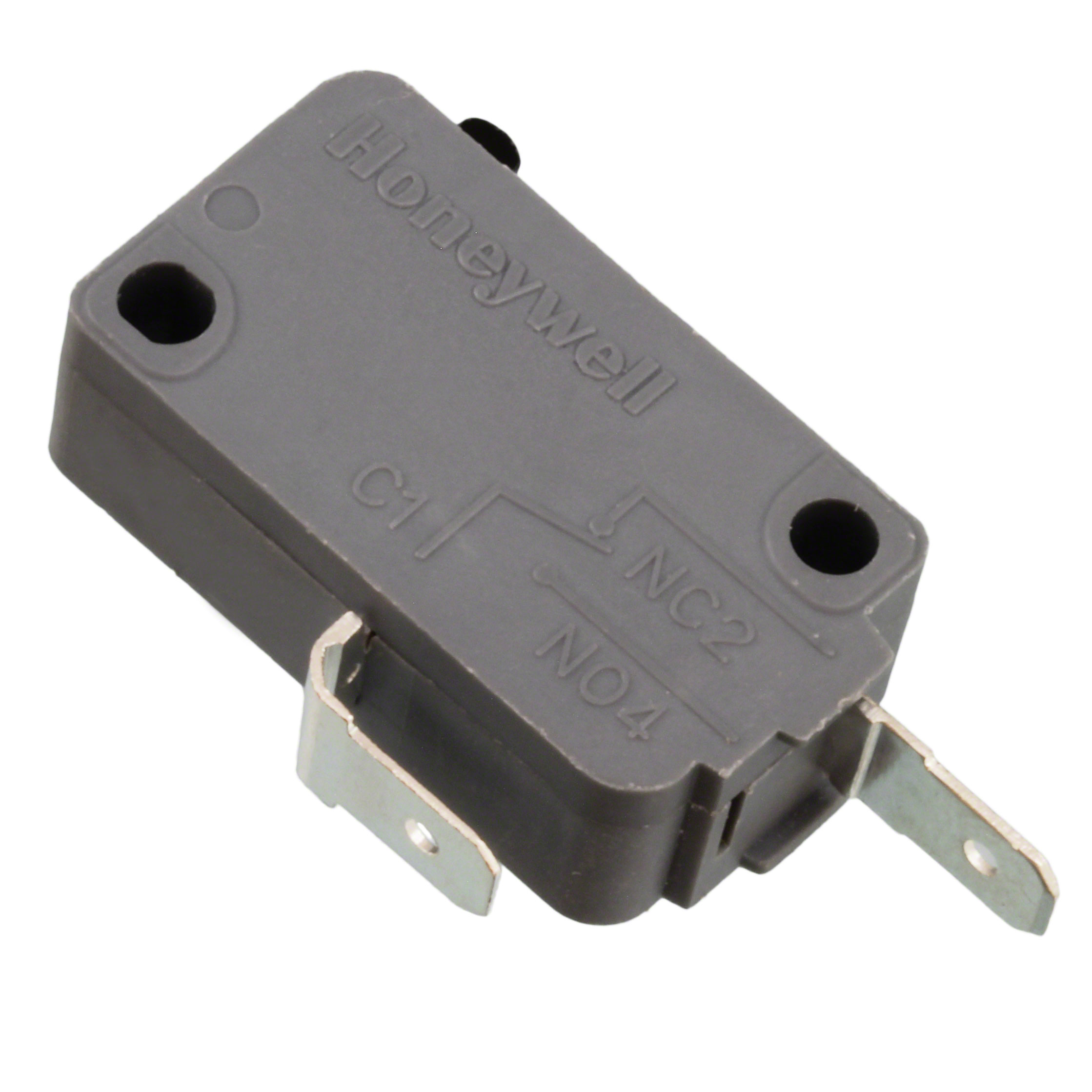

SWITCH SNAP ACT SPST-NC 22A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsV15 Basic Switch Install Instr Datasheet

V15T22-EC200

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 22A 250V

Deep-Dive with AI

DocumentsV15 Basic Switch Install Instr Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V15T22-EC200

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NC
Current Rating (Amps)	22 A
Differential Travel	0.016 "
Differential Travel	0.4 mm
Electrical Life	10000 Cycles
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	200 gf
Operating Position	0.579 in
Operating Position	14.7 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.76 mm
Overtravel	0.03 in
Pretravel	0.063 in
Pretravel	1.6 mm
Release Force	50 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	250 V

V15T22 Series

Part	Mounting Type	Current Rating (Amps)	Actuator Type	Differential Travel	Differential Travel	Mechanical Life	Voltage Rating - AC	Circuit	Termination Style	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Switch Function	Operating Force	Release Force	Operating Position	Operating Position	Electrical Life	Pretravel
Honeywell Sensing and Productivity Solutions V15T22-C1P100-01	Chassis Mount	22 A	Round (Pin Plunger)	0.5 mm	0.02 in	1000000 Cycles	125 V	SPST-NO	Quick Connect - 0.250" (6.3mm)	1.5 mm	0.06 in	125 °C	-25 °C	0.76 mm	0.03 in	Off-Mom	100 gf	25 gf	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T22-CZ300B05	Chassis Mount	22 A	Lever Roller			1000000 Cycles	125 V	SPDT	Quick Connect - 0.250" (6.3mm)			125 °C	-25 °C			On-Mom
Honeywell Sensing and Productivity Solutions V15T22-CP200-K	Chassis Mount	22 A	Round (Pin Plunger)	0.4 mm	0.016 "	5000000 Cycles	250 V	SPST-NO	Quick Connect - 0.250" (6.3mm)	1.6 mm	0.063 in	125 °C	-25 °C	0.76 mm	0.03 in	Off-Mom	200 gf	50 gf	0.579 in	14.7 mm	10000 Cycles
Honeywell Sensing and Productivity Solutions V15T22-EC200	Chassis Mount	22 A	Round (Pin Plunger)	0.4 mm	0.016 "	5000000 Cycles	250 V	SPST-NC	Quick Connect - 0.187" (4.7mm)	1.6 mm	0.063 in	125 °C	-25 °C	0.76 mm	0.03 in	On-Mom	200 gf	50 gf	0.579 in	14.7 mm	10000 Cycles
Honeywell Sensing and Productivity Solutions V15T26-CP200	Chassis Mount	26 A	Round (Pin Plunger)	0.5 mm	0.02 in	1000000 Cycles	250 V	SPST-NO	Quick Connect - 0.250" (6.3mm)	1.5 mm	0.06 in	125 °C	-25 °C	0.76 mm	0.03 in	Off-Mom	200 gf	50 gf	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T22-CZ100	Chassis Mount	22 A	Round (Pin Plunger)	0.5 mm	0.02 in	1000000 Cycles	125 V	SPDT	Quick Connect - 0.250" (6.3mm)	1.5 mm	0.06 in	125 °C	-25 °C	0.76 mm	0.03 in	On-Mom	100 gf	25 gf	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T22-CP200	Chassis Mount	22 A	Round (Pin Plunger)	0.5 mm	0.02 in	1000000 Cycles	125 V	SPST-NO	Quick Connect - 0.250" (6.3mm)	1.5 mm	0.06 in	125 °C	-25 °C	0.76 mm	0.03 in	Off-Mom	200 gf	50 gf	0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T26-CZ300A04	Chassis Mount	26 A	Lever Simulated Roller	1.3 mm	0.05 in	1000000 Cycles	250 V	SPDT	Quick Connect - 0.250" (6.3mm)	0.125 in		125 °C	-25 °C	1.2 mm	0.047 "	On-Mom	180 gf	30 gf	0.728 in	18.49 mm		3.2 mm
Honeywell Sensing and Productivity Solutions V15T26-CP300-01	Chassis Mount	26 A	Round (Pin Plunger)	0.5 mm	0.02 in	1000000 Cycles	250 V	SPST-NO	Quick Connect - 0.250" (6.3mm)	1.5 mm	0.06 in	125 °C	-25 °C	0.76 mm	0.03 in	Off-Mom	300 gf		0.579 in	14.7 mm
Honeywell Sensing and Productivity Solutions V15T22-C1Z100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.71
		10	$ 3.91
		25	$ 3.62
		50	$ 3.42
		100	$ 3.24
		250	$ 3.00
		500	$ 2.84

Description

General part information

V15T22 Series

Switch SPST-NC Chassis Mount

Documents

Technical documentation and resources

V15 Basic Switch Install Instr

Datasheet
