612-83-322-41-001101

Active

PRECI-DIP SA

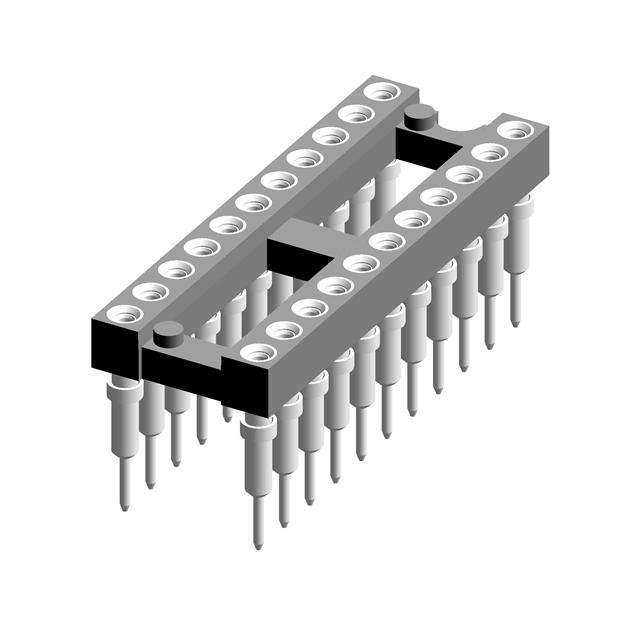

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

612-83-322-41-001101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 22POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	612-83-322-41-001101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame, Carrier
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	22
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	7.39 mm
Termination Post Length [x]	0.291 in
Type	0.3 "
Type	7.62 mm
Type	DIP

612-83 Series

Part	Termination	Pitch - Post	Pitch - Post	Contact Finish - Post	Material Flammability Rating	Housing Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Termination Post Length [x]	Termination Post Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Type	Type	Type	Contact Material - Post [custom]	Contact Finish - Mating	Contact Material - Mating	Contact Resistance	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 612-83-648-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	48	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.6 in	15.24 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-420-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	20	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.4 in	10.16 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-652-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám		7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.6 in	15.24 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-306-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám		7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.3 "	7.62 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame	2	6	3
PRECI-DIP SA 612-83-322-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	22	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.3 "	7.62 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-432-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám		7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.4 in	10.16 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame				2 x 16	32
PRECI-DIP SA 612-83-610-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám		7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.6 in	15.24 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame				2 x 5		10
PRECI-DIP SA 612-83-422-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	22	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.4 in	10.16 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-316-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	16	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.3 "	7.62 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame
PRECI-DIP SA 612-83-428-41-001101	Solder	2.54 mm	0.1 in	Tin	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	29.5 Áin	0.75 Ám	28	7.39 mm	0.291 in	-55 °C	125 °C	Through Hole	1 A	DIP	0.4 in	10.16 mm	Brass	Gold	Beryllium Copper	10 mOhm	Carrier Open Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1512	$ 1.85

Description

General part information

612-83 Series

22 (2 x 11) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
