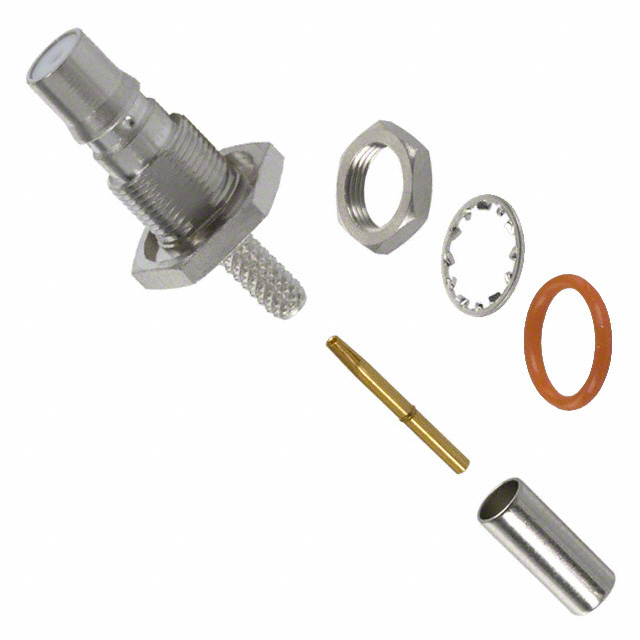

930-124J-51S

Active

Amphenol RF

CONN QMA JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

930-124J-51S

Active

Amphenol RF

CONN QMA JACK STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	930-124J-51S

Body Finish	White Bronze
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	480 V

930-12 Series

Part	Voltage Rating	Impedance	Connector Type	Frequency - Max [Max]	Mounting Type	Center Contact Material	Housing Color	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Center Contact Plating	Number of Ports	Contact Termination	Dielectric Material	Body Material	Shield Termination	Mating Cycles	Features	Mounting Feature	Includes	Cable Group	Cable Group [Min]	Cable Group [Max]
Amphenol RF 930-128J-51P	480 V	50 Ohms	Female Socket Jack	6000 MHz	Through Hole Right Angle	Beryllium Copper	Gold	Gold	-40 °C	80 C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder
Amphenol RF 930-127J-51S	480 V	50 Ohms	Female Socket Receptacle	6000 MHz		Beryllium Copper	Silver	White Bronze	-55 °C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder	500	Extended Insulation	Bulkhead - Rear Side Nut
Amphenol RF 930-124J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 930-121J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Gold	Gold	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder			Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 930-125J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Crimp	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 930-120P-51S	480 V	50 Ohms	Male Pin Plug	6000 MHz	Free Hanging (In-Line)	Brass	Silver	White Bronze	-65 ░C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp	500			1 Connector 1 Contact 1 Ferrule	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 930-122J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Gold	Gold	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder			Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 930-126J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-65 ░C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder	500		Bulkhead - Front Side Nut	1 Connector 1 Nut
Amphenol RF 930-123J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	188 316 Double Braid M17/152-RD316 RG-179

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.41
		10	$ 16.82
		25	$ 15.94
		50	$ 15.71
		100	$ 13.86
		300	$ 12.94
		500	$ 12.66

Description

General part information

930-12 Series

QMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
