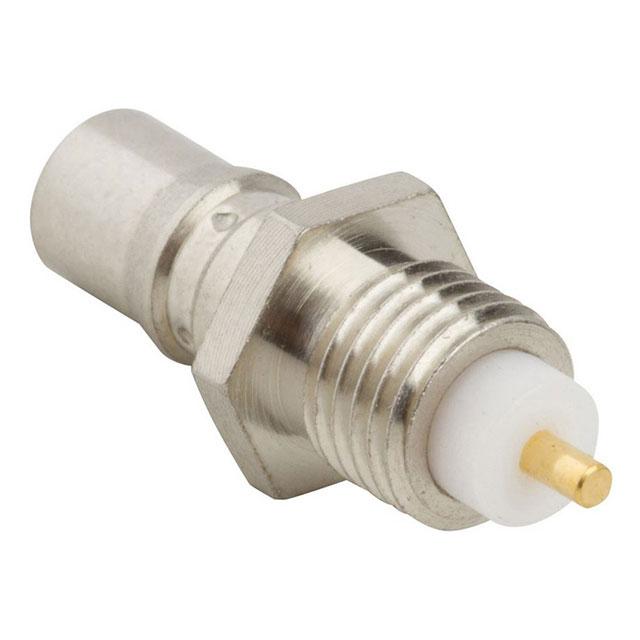

930-127J-51S

Active

Amphenol RF

CONN QMA RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQMA Series

930-127J-51S

Active

Amphenol RF

CONN QMA RCPT STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsQMA Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	930-127J-51S

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	480 V

930-12 Series

Part	Voltage Rating	Impedance	Connector Type	Frequency - Max [Max]	Mounting Type	Center Contact Material	Housing Color	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Center Contact Plating	Number of Ports	Contact Termination	Dielectric Material	Body Material	Shield Termination	Mating Cycles	Features	Mounting Feature	Includes	Cable Group	Cable Group [Min]	Cable Group [Max]
Amphenol RF 930-128J-51P	480 V	50 Ohms	Female Socket Jack	6000 MHz	Through Hole Right Angle	Beryllium Copper	Gold	Gold	-40 °C	80 C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder
Amphenol RF 930-127J-51S	480 V	50 Ohms	Female Socket Receptacle	6000 MHz		Beryllium Copper	Silver	White Bronze	-55 °C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder	500	Extended Insulation	Bulkhead - Rear Side Nut
Amphenol RF 930-124J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 930-121J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Gold	Gold	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder			Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 930-125J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Crimp	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 930-120P-51S	480 V	50 Ohms	Male Pin Plug	6000 MHz	Free Hanging (In-Line)	Brass	Silver	White Bronze	-65 ░C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp	500			1 Connector 1 Contact 1 Ferrule	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 930-122J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Gold	Gold	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder			Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut
Amphenol RF 930-126J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-65 ░C	165 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Solder	500		Bulkhead - Front Side Nut	1 Connector 1 Nut
Amphenol RF 930-123J-51S	480 V	50 Ohms	Female Socket Jack	11 GHz		Beryllium Copper	Silver	White Bronze	-40 °C	85 °C	Snap-On	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	Crimp			Bulkhead - Front Side Nut	1 Connector 1 Contact 1 Lockwasher 1 Nut	188 316 Double Braid M17/152-RD316 RG-179

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.90

Description

General part information

930-12 Series

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

QMA Series

Datasheet
