DS1245AB-120+

Active

Analog Devices Inc./Maxim Integrated

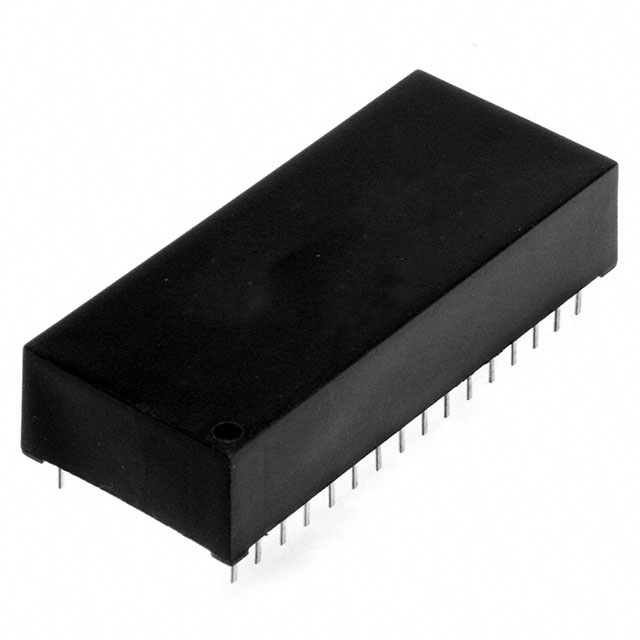

IC NVSRAM 1MBIT PARALLEL 32EDIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS1245AB-120+

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 1MBIT PARALLEL 32EDIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS1245AB-120+

Access Time	120 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	128K x 8
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	32-DIP Module
Supplier Device Package	32-EDIP
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V
Write Cycle Time - Word, Page	120 ns

DS1245AB Series

Part	Access Time	Memory Organization	Memory Size	Technology	Memory Type	Memory Interface	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Package / Case	Package / Case	Write Cycle Time - Word, Page	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Analog Devices Inc./Maxim Integrated DS1245ABP-70	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	34-PowerCap Module	4.75 V	5.25 V	Surface Mount	34-PowerCap™ Module	70 °C	0 °C	NVSRAM
Analog Devices Inc./Maxim Integrated DS1245AB-85	85 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm	85 ns
Analog Devices Inc./Maxim Integrated DS1245AB-70	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1245ABP-70IND+	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	34-PowerCap Module	4.75 V	5.25 V	Surface Mount	34-PowerCap™ Module	85 °C	-40 °C	NVSRAM
Analog Devices Inc./Maxim Integrated DS1245AB-120+	120 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm	120 ns
Analog Devices Inc./Maxim Integrated DS1245ABP-70IND	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	34-PowerCap Module	4.75 V	5.25 V	Surface Mount	34-PowerCap™ Module	85 °C	-40 °C	NVSRAM
Analog Devices Inc./Maxim Integrated DS1245AB-100	100 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm		100 ns	100 ns
Analog Devices Inc./Maxim Integrated DS1245AB-85+	85 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm	85 ns
Analog Devices Inc./Maxim Integrated DS1245AB-70+	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	70 °C	0 °C	NVSRAM	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1245AB-70IND+	70 ns	128K x 8	1 Mbit	NVSRAM (Non-Volatile SRAM)	Non-Volatile	Parallel	32-EDIP	4.75 V	5.25 V	Through Hole	32-DIP Module	85 °C	-40 °C	NVSRAM	0.6 in	15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 43.59
		10	$ 38.69
		25	$ 36.90
		50	$ 35.59
		100	$ 34.33
		250	$ 32.72

Description

General part information

DS1245AB Series

NVSRAM (Non-Volatile SRAM) Memory IC 1Mbit Parallel 120 ns 32-EDIP
