T0058727822

Active

Apex Tool Group

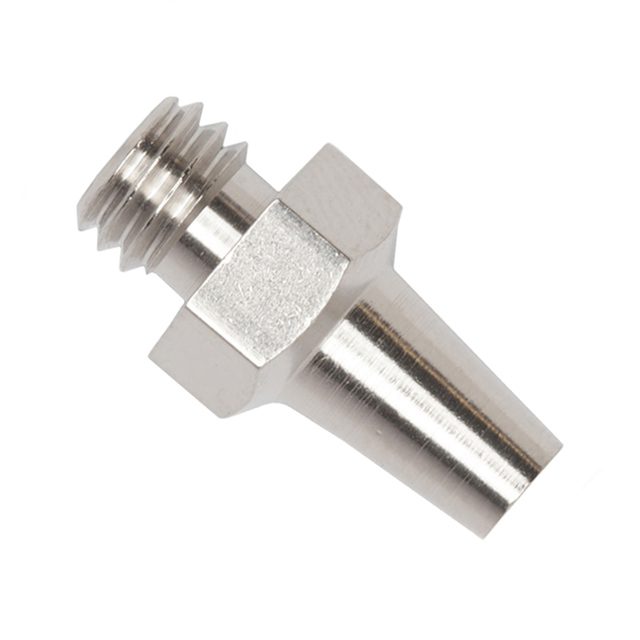

R06 HOTGAS NOZZLE 3.0 F.HGP

Search across all available documentation for this part.

Active

Apex Tool Group

R06 HOTGAS NOZZLE 3.0 F.HGP

Technical Specifications

Parameters and characteristics for this part

Specification	T0058727822

Diameter [diameter]	0.118 in
Diameter [diameter]	3 mm
For Use With/Related Products	HAP1, HAP200
Temperature Range [Max]	550 °C
Temperature Range [Max]	550 °C
Temperature Range [Min]	50 °C
Temperature Range [Min]	50 °C
Tip Shape	Nozzle, Round
Tip Type	Rework (Hot Air)

Part	Tip Type	Tip Shape	Diameter [diameter]	Diameter [diameter]	Width [x]	Width [x]	For Use With/Related Products	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Length [x]	Length [x]
Apex Tool Group T0058727773N
Apex Tool Group T0058727774N	Rework (Hot Air) SMD	Flat	1.5 mm	0.059 "	8 mm	0.315 in	HAP1 HAP200
Apex Tool Group T0058727772N
Apex Tool Group T0058727822	Rework (Hot Air)	Nozzle Round	3 mm	0.118 in			HAP1 HAP200	50 °C	50 °C	550 °C	550 °C
Apex Tool Group T0058727786N	Rework (Hot Air) SMD	Round	1.8 mm	0.071 in			HAP1 HAP200
Apex Tool Group T0058727783N	Rework (Hot Air) SMD	Round			18.01 mm	0.709 "	HAP1 HAP200					18.01 mm	0.709 in
Apex Tool Group T0058727787N	Rework (Hot Air) SMD	Round	2.49 mm	0.098 in			HAP1 HAP200
Apex Tool Group T0058727777N	Rework (Hot Air) SMD	Nozzle			6.5 mm	0.256 in	HAP1 HAP200					6 mm	0.236 in
Apex Tool Group T0058727784N
Apex Tool Group T0058727781N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.40

General part information

R06 HOTGAS NOZZLE 3.0 F.HGP

Technical documentation and resources
