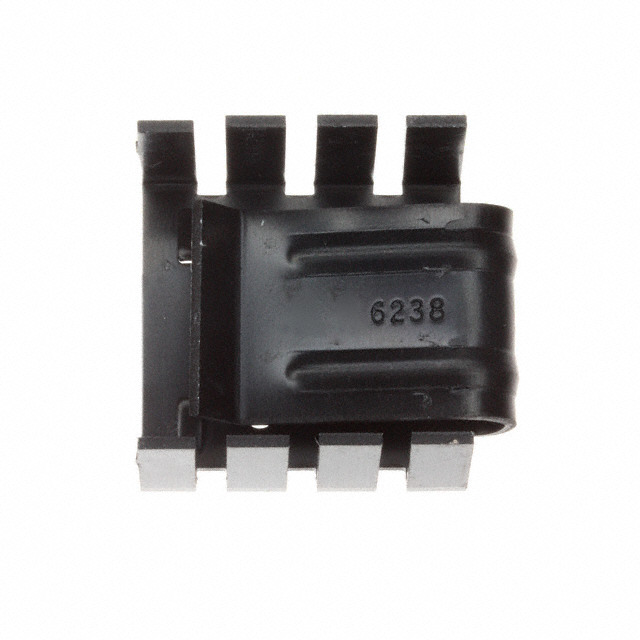

6238BG

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

BOARD LEVEL HEAT SINK

Technical Specifications

Parameters and characteristics for this part

Specification	6238BG

Attachment Method	Clip
Length	29.44 mm
Length	1.159 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2 W, 40 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	6 °C/W, 600 LFM
Thermal Resistance @ Natural	13.6 °C/W
Type	Board Level, Vertical
Width [x]	1.005 in
Width [x]	25.53 mm

Part	Power Dissipation @ Temperature Rise	Attachment Method	Length	Length	Thermal Resistance @ Forced Air Flow	Material Finish	Material	Width [x]	Width [x]	Package Cooled	Thermal Resistance @ Natural	Type	Shape
Boyd Laconia, LLC 6238BG	2 W 40 °C	Clip	29.44 mm	1.159 "	6 °C/W 600 LFM	Black Anodized	Aluminum	1.005 in	25.53 mm	TO-220	13.6 °C/W	Board Level Vertical	Rectangular Fins
Boyd Laconia, LLC 6238B-MTG	2 W 40 °C	Clip PC Pin	29.44 mm	1.159 "	6 °C/W 600 LFM	Black Anodized	Aluminum	1.005 in	25.53 mm	TO-220	13.6 °C/W	Board Level Vertical	Rectangular Fins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical
