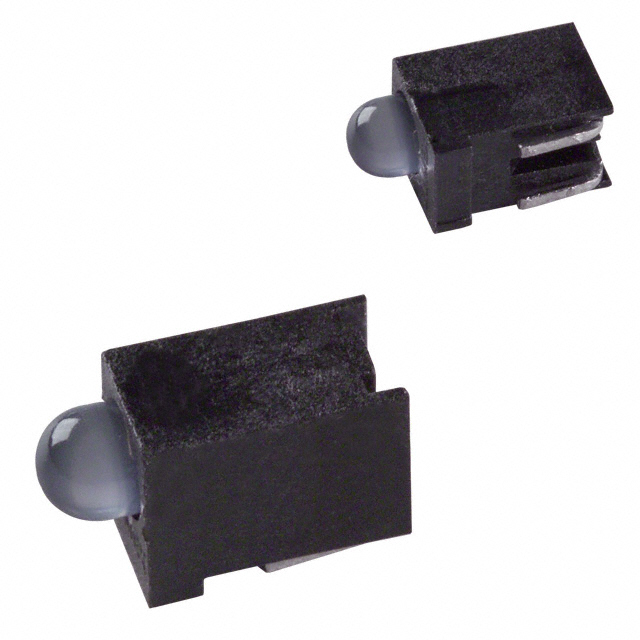

SSF-LXH305USBD-TR

Obsolete

Lumex Opto/Components Inc.

LED CBI 3MM BLU DIFF SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH305USBD-TR

Obsolete

Lumex Opto/Components Inc.

LED CBI 3MM BLU DIFF SMD RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH305USBD-TR

Color	Blue
Configuration	Single
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	80 mcd
Mounting Type	Surface Mount, Right Angle
Viewing Angle	60 °

SSF-LXH305 Series

Part	Mounting Type	Voltage Rating	Lens Size	Lens Size	Millicandela Rating	Lens Style	Wavelength - Peak	Color	Viewing Angle	Configuration	Lens Type
Lumex Opto/Components Inc. SSF-LXH305ID-TR	Surface Mount Right Angle	2 V	3 mm	T-1	40 mcd	Round with Domed Top	635 nm	Red	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305SOD-TR	Surface Mount Right Angle	2.1 V	3 mm	T-1	100 mcd	Round with Domed Top	610 nm		60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305SYD-TR	Surface Mount Right Angle	2.1 V	3 mm	T-1	250 mcd	Round with Domed Top	590 nm	Yellow	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305GD-TR	Surface Mount Right Angle		3 mm	T-1	30 mcd	Round with Domed Top	565 nm	Green	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305ID	Surface Mount Right Angle	2 V			40 mcd		635 nm	Red	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305USBD-TR	Surface Mount Right Angle		3 mm	T-1	80 mcd	Round with Domed Top		Blue	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305GD	Surface Mount Right Angle				30 mcd		565 nm	Green	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305SGD-TR	Surface Mount Right Angle		3 mm	T-1	150 mcd	Round with Domed Top	565 nm	Green	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305SYD	Surface Mount Right Angle	2.1 V			250 mcd		590 nm	Yellow	60 °	Single	Diffused Tinted
Lumex Opto/Components Inc. SSF-LXH305SGD	Surface Mount Right Angle				150 mcd		565 nm	Green	60 °	Single	Diffused Tinted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.54
		10	$ 3.21
	Digi-Reel®	1	$ 4.54
		10	$ 3.21

Description

General part information

SSF-LXH305 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available
