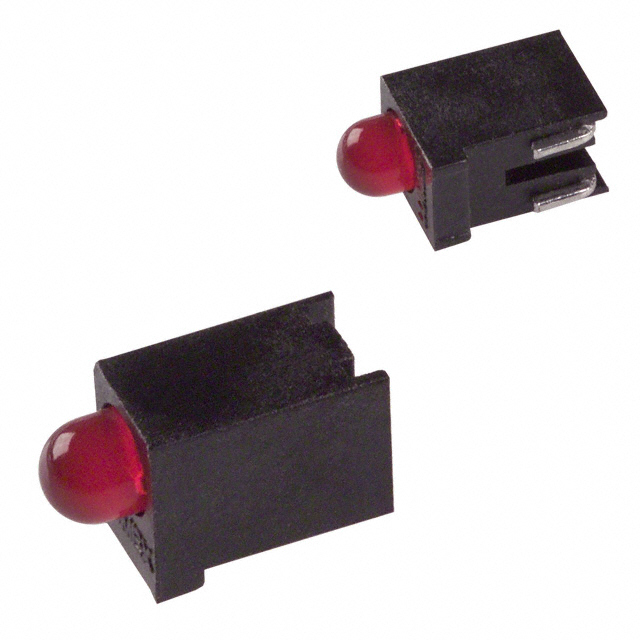

SSF-LXH305ID
ActiveLumex Opto/Components Inc.
LED CBI T-3MM RED DIFF SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
SSF-LXH305ID
ActiveLumex Opto/Components Inc.
LED CBI T-3MM RED DIFF SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSF-LXH305ID |
|---|---|
| Color | Red |
| Configuration | Single |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 40 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 635 nm |
SSF-LXH305 Series
| Part | Mounting Type | Voltage Rating | Lens Size | Lens Size | Millicandela Rating | Lens Style | Wavelength - Peak | Color | Viewing Angle | Configuration | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | Surface Mount Right Angle | 2 V | 3 mm | T-1 | 40 mcd | Round with Domed Top | 635 nm | Red | 60 ° | Single | Diffused Tinted |
Lumex Opto/Components Inc. | Surface Mount Right Angle | 2.1 V | 3 mm | T-1 | 100 mcd | Round with Domed Top | 610 nm | 60 ° | Single | Diffused Tinted | |
Lumex Opto/Components Inc. | Surface Mount Right Angle | 2.1 V | 3 mm | T-1 | 250 mcd | Round with Domed Top | 590 nm | Yellow | 60 ° | Single | Diffused Tinted |
Lumex Opto/Components Inc. | Surface Mount Right Angle | 3 mm | T-1 | 30 mcd | Round with Domed Top | 565 nm | Green | 60 ° | Single | Diffused Tinted | |
Lumex Opto/Components Inc. | Surface Mount Right Angle | 2 V | 40 mcd | 635 nm | Red | 60 ° | Single | Diffused Tinted | |||
Lumex Opto/Components Inc. | Surface Mount Right Angle | 3 mm | T-1 | 80 mcd | Round with Domed Top | Blue | 60 ° | Single | Diffused Tinted | ||
Lumex Opto/Components Inc. | Surface Mount Right Angle | 30 mcd | 565 nm | Green | 60 ° | Single | Diffused Tinted | ||||
Lumex Opto/Components Inc. | Surface Mount Right Angle | 3 mm | T-1 | 150 mcd | Round with Domed Top | 565 nm | Green | 60 ° | Single | Diffused Tinted | |
Lumex Opto/Components Inc. | Surface Mount Right Angle | 2.1 V | 250 mcd | 590 nm | Yellow | 60 ° | Single | Diffused Tinted | |||
Lumex Opto/Components Inc. | Surface Mount Right Angle | 150 mcd | 565 nm | Green | 60 ° | Single | Diffused Tinted |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.53 | |
Description
General part information
SSF-LXH305 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 2V 20mA Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
