YB15SKG01-5F-JF

Active

NKK Switches

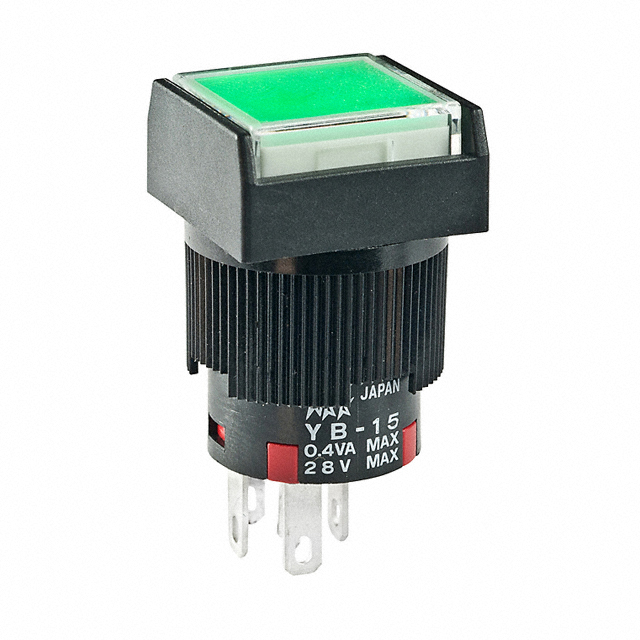

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

YB15SKG01-5F-JF

Active

NKK Switches

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15SKG01-5F-JF

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15SK Series

Part	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Type	Termination Style	Termination Style	Termination Style	Electrical Life	Actuator Type	Actuator Marking	Circuit	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Features	Illumination Type, Color
NKK Switches YB15SKG01-1C02-JB	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	1.9 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	LED Red
NKK Switches YB15SKG01	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Plunger for Cap	No Marking	SPDT			28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-EB	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Yellow (White Filter/Diffuser)	28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-5F-JB	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	2.2 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED
NKK Switches YB15SKW01-5D24-JB	125 V	3 A	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	24 V	Clear	30 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Amber LED
NKK Switches YB15SKG01-1F05-JA	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	5 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED
NKK Switches YB15SKW01-1D24-JB	125 V	3 A	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	24 V	Clear	30 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Amber LED
NKK Switches YB15SKG01-GB	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Blue	28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKW01-FB	125 V	3 A	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Green	30 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-5F-JF	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	2.2 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.05
		10	$ 18.21
		25	$ 17.39
		40	$ 16.47
		80	$ 15.86
		230	$ 14.84
		440	$ 12.66
Newark	Each	1	$ 39.40
		5	$ 37.42
		10	$ 34.68
		25	$ 31.64
		50	$ 27.38
		100	$ 25.56
		250	$ 23.28

Description

General part information

YB15SK Series

The YB15SKG01-5F-JF is a short body green-illuminated SPDT rectangular Pushbutton Switch with cap having clear lens and green diffuser. The terminals are made of phosphor bronze with tin-plating and gold-contacts. The Unique thermoplastic elastomer seal inside caps plus rolled sleeve of nitrile butadiene rubber at joining of housing and inner case, all for added protection to interior mechanism. Distinctive design of snap-action contacts for shock resistance, long life and sensitive actuation. The latch down for indication of circuit status, plus audible, tactile feedback with smooth, responsive operation.
