YB15SKW01-FB

Active

NKK Switches

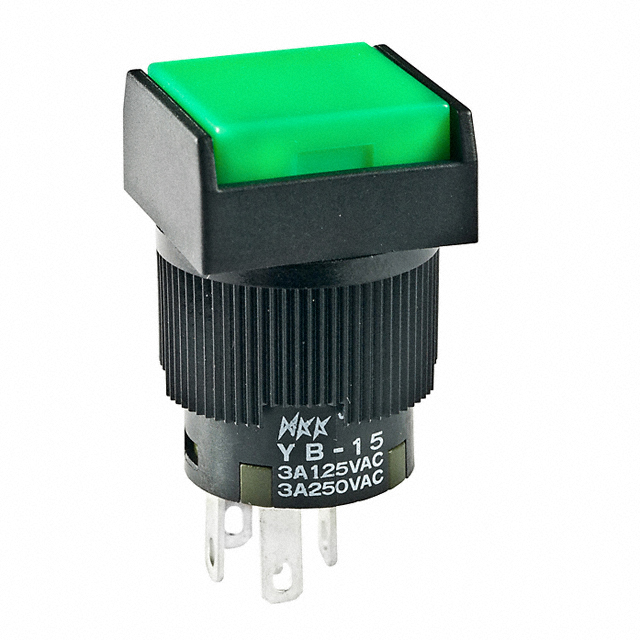

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, GREEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

YB15SKW01-FB

Active

NKK Switches

PUSHBUTTON SWITCH, YB SERIES, 16 MM, SPDT, ON-(ON), SQUARE, GREEN

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15SKW01-FB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB15SK Series

Part	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Type	Termination Style	Termination Style	Termination Style	Electrical Life	Actuator Type	Actuator Marking	Circuit	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Features	Illumination Type, Color
NKK Switches YB15SKG01-1C02-JB	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	1.9 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	LED Red
NKK Switches YB15SKG01	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Plunger for Cap	No Marking	SPDT			28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-EB	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Yellow (White Filter/Diffuser)	28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-5F-JB	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	2.2 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED
NKK Switches YB15SKW01-5D24-JB	125 V	3 A	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	24 V	Clear	30 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Amber LED
NKK Switches YB15SKG01-1F05-JA	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	5 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED
NKK Switches YB15SKW01-1D24-JB	125 V	3 A	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	24 V	Clear	30 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Amber LED
NKK Switches YB15SKG01-GB	28 V	0.4 VA	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Blue	28 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKW01-FB	125 V	3 A	On-Mom	Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT		Green	30 V	70 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback
NKK Switches YB15SKG01-5F-JF	28 V	0.4 VA	On-Mom	Illuminated Standard	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	Button Square	No Marking	SPDT	2.2 VDC	Clear	28 V	50 °C	-25 °C	Panel Mount Front	16 mm	1000000 Cycles	Tactile Feedback	Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.90
Newark	Each	1	$ 25.88
		5	$ 24.58
		10	$ 22.78
		25	$ 20.78
		50	$ 17.99
		100	$ 16.79
		250	$ 15.29

Description

General part information

YB15SK Series

Pushbutton Switch SPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
