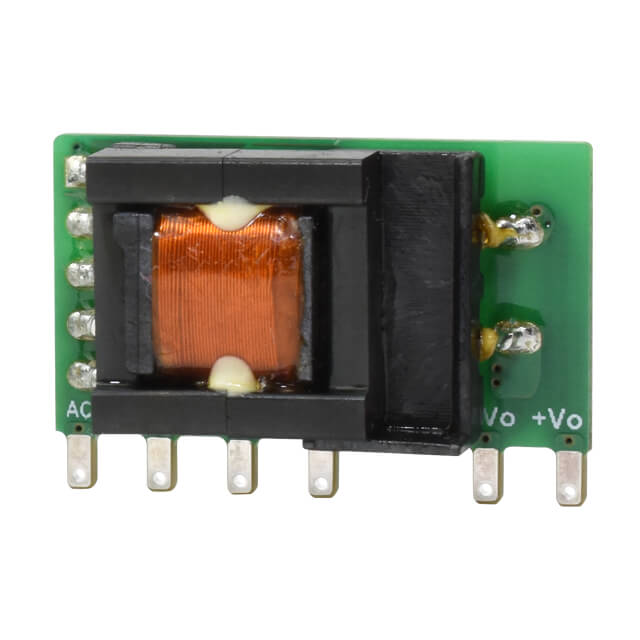

PBO-5C-3

CUI Inc.

AC/DC CONVERTER 3.3V 3.3W

Deep-Dive with AI

Search across all available documentation for this part.

PBO-5C-3

CUI Inc.

AC/DC CONVERTER 3.3V 3.3W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBO-5C-3

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max) [Max]	1 A
Efficiency	69 %
Line Regulation	1.5 %
Load Regulation	3 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SIP Module
Power (Watts)	3.3 W
Size / Dimension [x]	1.04 in
Size / Dimension [x]	26.4 mm
Size / Dimension [y]	0.43 in
Size / Dimension [y]	11 mm
Size / Dimension [z]	14.7 mm
Size / Dimension [z]	0.58 "
Standard Number	60335-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	430 VDC, 305 VAC
Voltage - Input [Min]	70 VDC, 85 VAC
Voltage - Output 1	3.3 V

PBO-5 Series

Part	Number of Outputs	Mounting Type	Load Regulation	Package / Case	Voltage - Output 1	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Line Regulation	Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Approval Agency	Weight	Weight	Features
CUI Inc. PBO-5C-5	1	Through Hole	3 %	6-SIP Module	5 V	Household Appliances ITE (Commercial)	5 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	76 %	1.5 %	Open Frame	1 A	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus
CUI Inc. PBO-5C-12	1	Through Hole	3 %	6-SIP Module	12 V	Household Appliances ITE (Commercial)	5 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	79 %	1.5 %	Open Frame	420 mA	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus
CUI Inc. PBO-5C-15	1	Through Hole	3 %	6-SIP Module	15 V	Household Appliances ITE (Commercial)	5 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	79 %	1.5 %	Open Frame	340 mA	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus
CUI Inc. PBO-5C-3	1	Through Hole	3 %	6-SIP Module	3.3 V	Household Appliances ITE (Commercial)	3.3 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	69 %	1.5 %	Open Frame	1 A	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus
CUI Inc. PBO-5-S9	1	Through Hole	1.5 %	14-SIP Module 6 Leads	9 V	ITE (Commercial)	5 W	20 mm	0.79 in	0.5 in	12.8 mm	1.57 in	40 mm	75 %	0.5 %	Open Frame	560 mA	85 °C	-25 °C	85 VAC 100 V	264 VAC 400 VDC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN IEC UL	0.016 lb	7.26 g	Universal Input
CUI Inc. PBO-5-S24-B	1	Through Hole Right Angle	1.5 %	14-SIP Module 6 Leads	24 V	ITE (Commercial)	5 W	12.8 mm	0.5 in	0.79 "	20 mm	1.57 in	40 mm	79 %	0.5 %	Open Frame	210 mA	85 °C	-25 °C	85 VAC 100 V	264 VAC 400 VDC	55024 55032 Class A 60950-1 62368-1	CB Scheme EN IEC UL			Universal Input
CUI Inc. PBO-5C-24	1	Through Hole	3 %	6-SIP Module	24 V	Household Appliances ITE (Commercial)	5 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	81 %	1.5 %	Open Frame	210 mA	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus
CUI Inc. PBO-5-S12	1	Through Hole	1.5 %	14-SIP Module 6 Leads	12 V	ITE (Commercial)	5 W	20 mm	0.79 in	0.5 in	12.8 mm	1.57 in	40 mm	76 %	0.5 %	Open Frame	420 mA	85 °C	-25 °C	85 VAC 100 V	264 VAC 400 VDC	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN IEC UL	0.016 lb	7.26 g	Universal Input
CUI Inc. PBO-5C-9	1	Through Hole	3 %	6-SIP Module	9 V	Household Appliances ITE (Commercial)	5 W	14.7 mm	0.58 "	0.43 in	11 mm	1.04 in	26.4 mm	77 %	1.5 %	Open Frame	560 mA	85 °C	-40 °C	70 VDC 85 VAC	305 VAC 430 VDC	60335-1 62368-1	CE cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.05
		5	$ 1.93
		10	$ 1.93

Description

General part information

PBO-5 Series

Open Frame AC DC Converters 1 Output 3.3V 1A 85 ~ 305 VAC, 70 ~ 430 VDC Input

Documents

Technical documentation and resources

No documents available
