UCC28780EVM-021

Active

Texas Instruments

DEVELOPMENT INTERFACE

Search across all available documentation for this part.

Active

Texas Instruments

DEVELOPMENT INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	UCC28780EVM-021

Board Type	Fully Populated
Current - Output	2.25 A
Main Purpose	AC/DC, Primary and Secondary Side
Outputs and Type	Isolated
Outputs and Type	1
Regulator Topology	Flyback
Supplied Contents	Board(s)
Utilized IC / Part	UCC28780, UCC24612
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	20 V

Part	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Frequency - Switching [Max]	Voltage - Start Up	Mounting Type	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Current - Output	Main Purpose	Voltage - Output	Regulator Topology
Texas Instruments UCC28780DR	Isolated	-40 °C	125 ¯C	Flyback	16-SOIC	0.154 in	3.9 mm	16-SOIC	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V
Texas Instruments UCC28780EVM-002															90 VAC	264 VAC	UCC28780	Board(s)	Isolated	1	Fully Populated	2.25 A	AC/DC Primary Side	20 V	Flyback
Texas Instruments UCC28780EVM-021															90 VAC	264 VAC	UCC24612 UCC28780	Board(s)	Isolated	1	Fully Populated	2.25 A	AC/DC Primary and Secondary Side	20 V	Flyback
Texas Instruments UCC28780RTER	Isolated	-40 °C	125 ¯C	Flyback	16-WFQFN Exposed Pad			16-WQFN (3x3)	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V
Texas Instruments UCC28780RTET	Isolated	-40 °C	125 ¯C	Flyback	16-WFQFN Exposed Pad			16-WQFN (3x3)	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 178.80

General part information

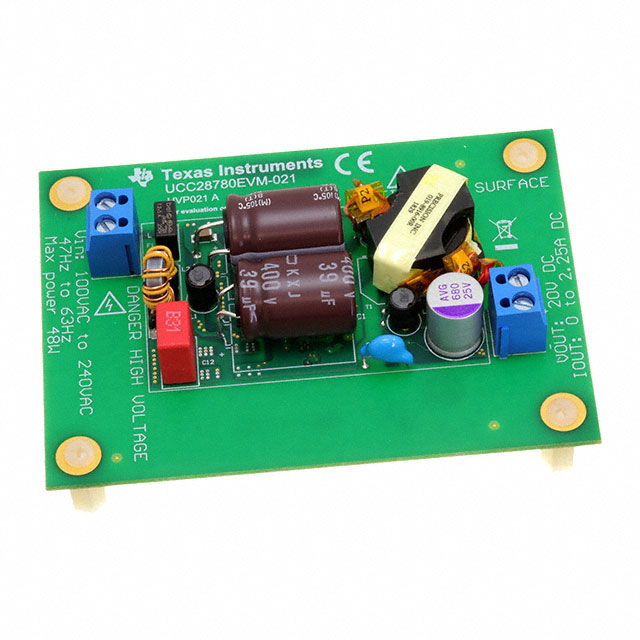

UCC24612, UCC28780 - AC/DC, Primary and Secondary Side 1, Isolated Outputs Evaluation Board
