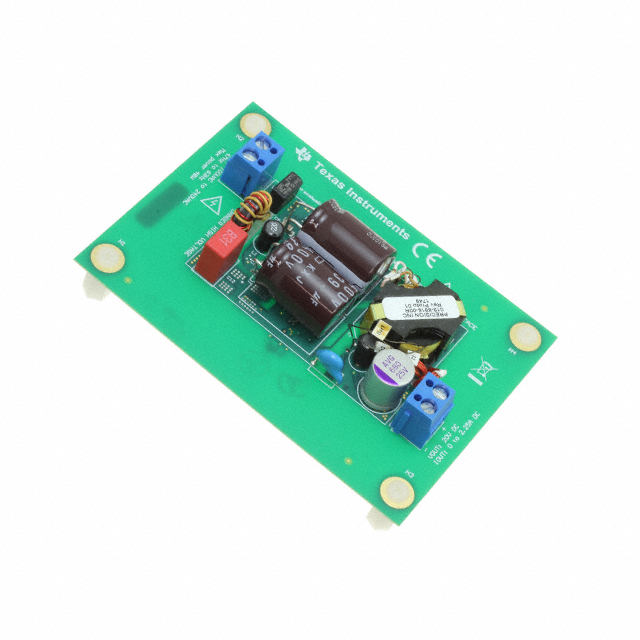

UCC28780EVM-002

Active

Texas Instruments

EVALUATION MODULE

Search across all available documentation for this part.

Active

Texas Instruments

EVALUATION MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Frequency - Switching [Max]	Voltage - Start Up	Mounting Type	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Current - Output	Main Purpose	Voltage - Output	Regulator Topology
Texas Instruments UCC28780DR	Isolated	-40 °C	125 ¯C	Flyback	16-SOIC	0.154 in	3.9 mm	16-SOIC	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V
Texas Instruments UCC28780EVM-002															90 VAC	264 VAC	UCC28780	Board(s)	Isolated	1	Fully Populated	2.25 A	AC/DC Primary Side	20 V	Flyback
Texas Instruments UCC28780EVM-021															90 VAC	264 VAC	UCC24612 UCC28780	Board(s)	Isolated	1	Fully Populated	2.25 A	AC/DC Primary and Secondary Side	20 V	Flyback
Texas Instruments UCC28780RTER	Isolated	-40 °C	125 ¯C	Flyback	16-WFQFN Exposed Pad			16-WQFN (3x3)	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V
Texas Instruments UCC28780RTET	Isolated	-40 °C	125 ¯C	Flyback	16-WFQFN Exposed Pad			16-WQFN (3x3)	1 MHz	17.5 V	Surface Mount	Over Current Over Temperature Over Voltage Short Circuit	34 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 238.80

General part information

UCC28780 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board

Technical documentation and resources

No documents available
